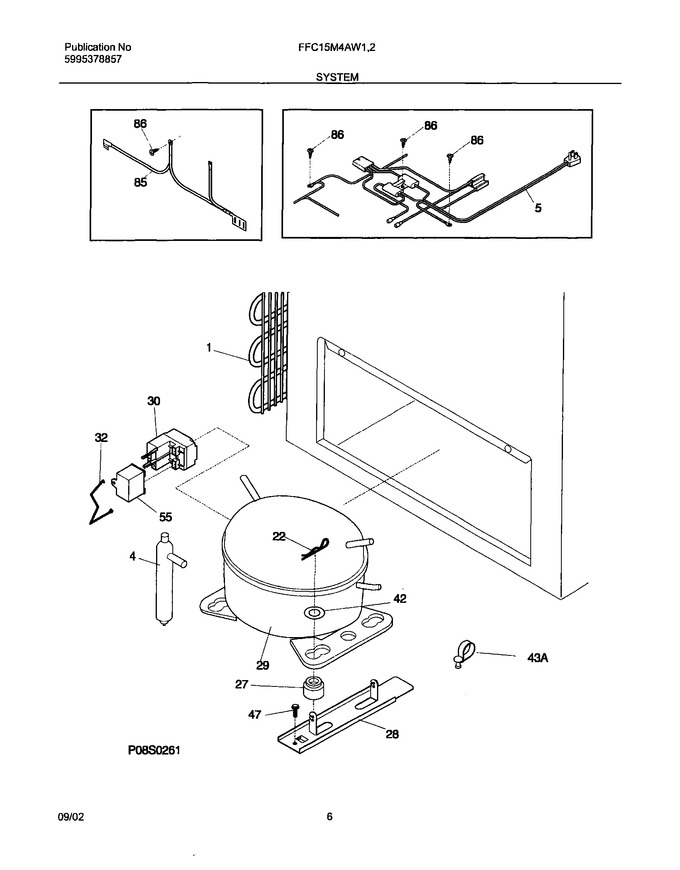

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
03 - Door
05 - Cabinet
07 - System
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303925238 | Condenser |
|
$ 467.78 | |||||
| 4 | 5303305677 | Drier-filter (Replaces: 216634500) |
|
Immediately | $ 31.67 | ||||
| 5 | 216551600 | Wiring Harness |
|
$ 135.35 | |||||
| 22 | 216056400 | Clip,compressor Mtg ,spring |
|
- | |||||
| 27 | 216498900 | Grommet,compressor (Replaces: 5308002681) |
|
$ 13.01 | |||||
| 28 | 5303212615 | Support, Compressor |
|
- | |||||
| 30 | 5304491584 | Controller,compressor (Replaces: 216649313) |
|
Immediately | $ 101.35 | ||||
| 32 | 216649200 | Clip,controller |
|
$ 6.30 | |||||
| 42 | 216232700 | Washer,flat ,1``od X 0.531``id |
|
- | |||||
| 47 | 216629601 | Screw,hex Washer Head ,10-16 X 0.500 ,tapping (Replaces: 216629600) |
|
$ 13.01 | |||||
| 85 | 216533500 | Wire,ground |
|
- | |||||
| 86 | 216036600 | Screw,ph Washer Head ,8-32ca X 0.500 ,thread Forming |
|
- | |||||
| 29No. | 216784300 | Compressor,w/o Electricals |
|
- | |||||
| 43A | 5303212614 | Clip,harness Mount |
|
$ 2.88 | |||||
| 55No. | 218909912 | Capacitor,run ,50/60 Hz ,220 Vac ,12 Microfarad (Replaces: 216787800) |
|
Immediately | $ 74.75 |
