Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 5303925238 Condenser Special Order $ 467.78

4 5303305677 Drier-filter In-Stock Immediately $ 31.67

5 216160600 Harness-wire Appelez-nous -
22 216056400 Clip, Spring Mtg Appelez-nous -
27 216498900 Grommet,compressor   (Replaces: 5308002681) Special Order $ 13.01

28 5303212615 Support, Compressor Appelez-nous -
29 5300186041 Compressor W/elec, Service Appelez-nous -
30 216008900 Starter-ptc Appelez-nous -
31 5303206885 Overload Special Order $ 119.23

32 216147800 Wire-bale Appelez-nous -
42 216232700 Washer-flat Appelez-nous -
43 5303212614 Clip Harness Special Order $ 2.88

44 08016777 Clamp, Pwr Cord Assy Appelez-nous -
46 08037851 Screw, Ph Type Ab, 8, 32 X 1/2, Wiring Harness Special Order $ 3.57

47 08016776 Screw-compressor, Ind Hwh Type T, 10-32 X 1/2, Support Appelez-nous -
55 5304464438 Capacitor-run   (Replaces: 216236300) In-Stock Immediately $ 35.38

85 5303294326 Wire Ground, Compressor Appelez-nous -
86 216036600 Screw, Rwhd (gx, Ca), 8, 32 X 1/2 Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

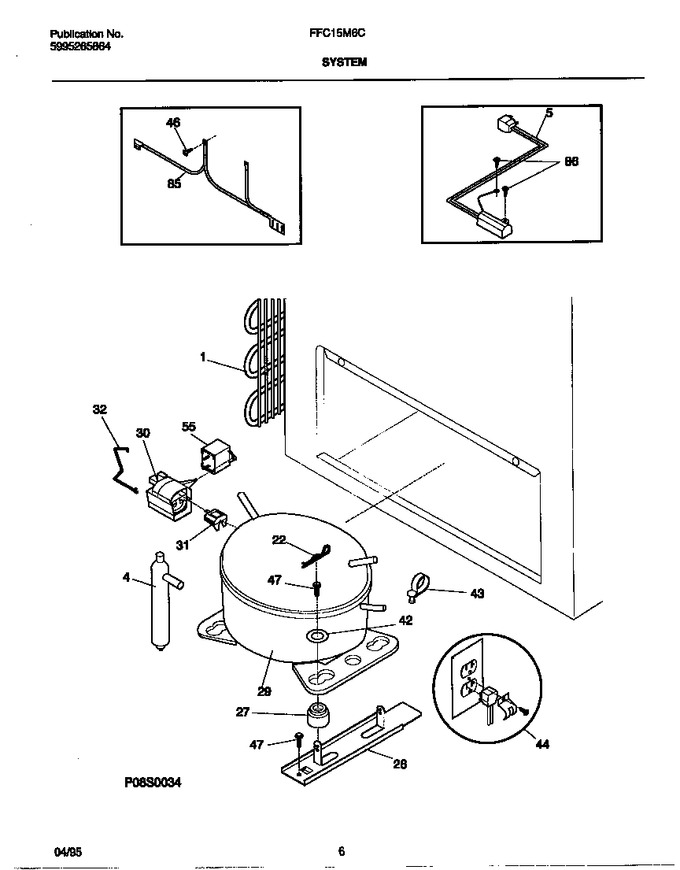

Diagram for FFC15M6CW0
