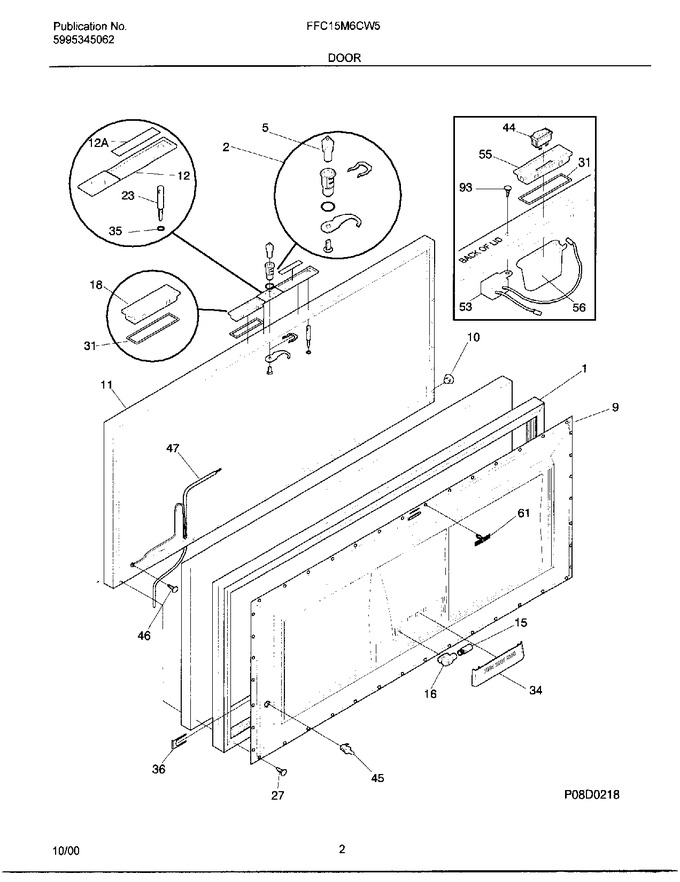

SELECT A DIAGRAM

01 - Cover


02 - Door


04 - Cabinet


06 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	216481211		Gasket-door, White   (Replaces: 216481201)				$ 204.03
2	5303925107		Lock Assy		Appelez-nous	-
9	216687004		Panel-inner Lid,white		Appelez-nous	-
10	216141101		Plug Button, White				$ 2.57
11	216129924		Lid,white		Appelez-nous	-
12	216208100		Bezel, Nameplate		Appelez-nous	-
14	297243800		Switch-light Plunger   (Replaces: 216472300)				$ 36.68
15	5304517886		Bulb-light,40w ,130v   (Replaces: 216608600)			Immediately	$ 73.06
16	216684000		Socket-light/lamp		Appelez-nous	-
18	216140200		Handle, Recessed, White		Appelez-nous	-
23	3200895		Light, Signal, Round, Amber		Appelez-nous	-
27	5303212828		Clip,panel				$ 16.63
31	08009392		Gasket, White		Appelez-nous	-
34	216087902		Shield-light		Appelez-nous	-
35	5303297015		Washer, Signal Light		Appelez-nous	-
36	5306599968		Plate, Backup, Light Switch		Appelez-nous	-
44	5303017178		Switch-rocker		Appelez-nous	-
46	08037851		Screw, Ph Type Ab, 8, 32 X 1/2, Wiring Harness				$ 3.57
55	216164000		Housing, Switch		Appelez-nous	-
56	216694200		Sealing Cap		Appelez-nous	-
61	5309948955		Clip-panel				$ 11.53
93	216858001		Screw   (Replaces: 5303161215)			Immediately	$ 10.85
12A	216683000		Insert-bezel		Appelez-nous	-
F47	216756100		Harness-lid		Appelez-nous	-
F5	297147700		Key, Lock   (Replaces: 216388700)			Immediately	$ 7.57
F53	5303208483		Buzzer, Alarm		Appelez-nous	-
NI	5303917276		Insulation				$ 330.91

    View Diagram in Separate Window       Print Part List
