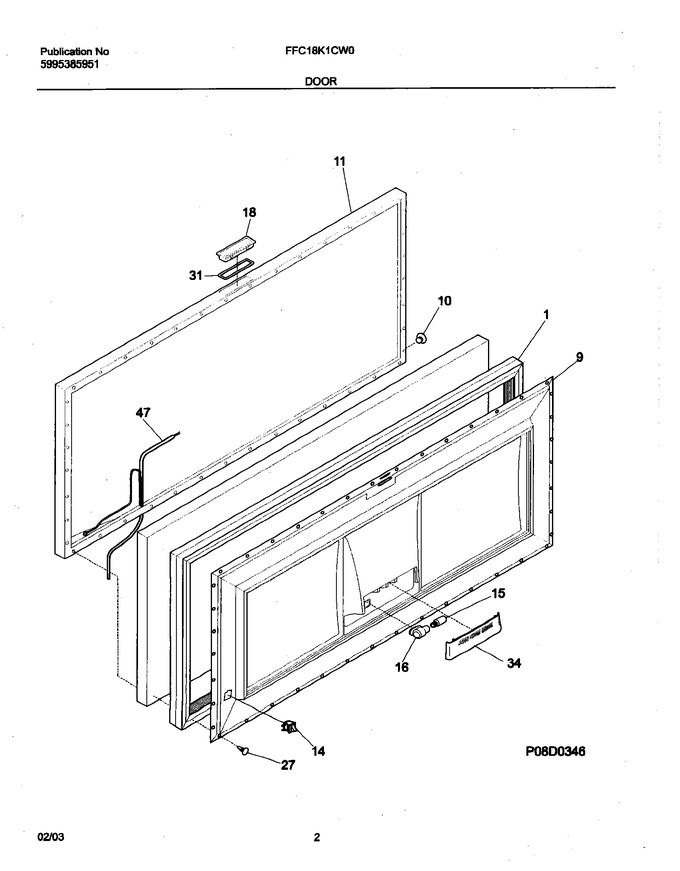

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	216481301		Gasket-door,white				$ 320.06
9	216893203		Panel-inner Door,frzr		Appelez-nous	-
10	216141101		Plug Button, White				$ 2.57
11	216130019		Panel-lid,white		Appelez-nous	-
14	216822900		Switch,light/lamp ,ramp			Immediately	$ 70.16
15	5304517886		Light Bulb/lamp   (Replaces: 216846400)			Immediately	$ 73.06
16	297139501		Socket,light/lamp ,25 W   (Replaces: 216817600)				$ 19.52
18	216140200		Handle, Recessed, White		Appelez-nous	-
27	5303212828		Clip,panel Mtg				$ 16.63
31	08009392		Gasket, White		Appelez-nous	-
34	5303296969		Shield,lid Lamp		Appelez-nous	-
F47	216898800		Harness-lid		Appelez-nous	-
NI	5303917276		Insulation				$ 330.91
