SELECT A DIAGRAM

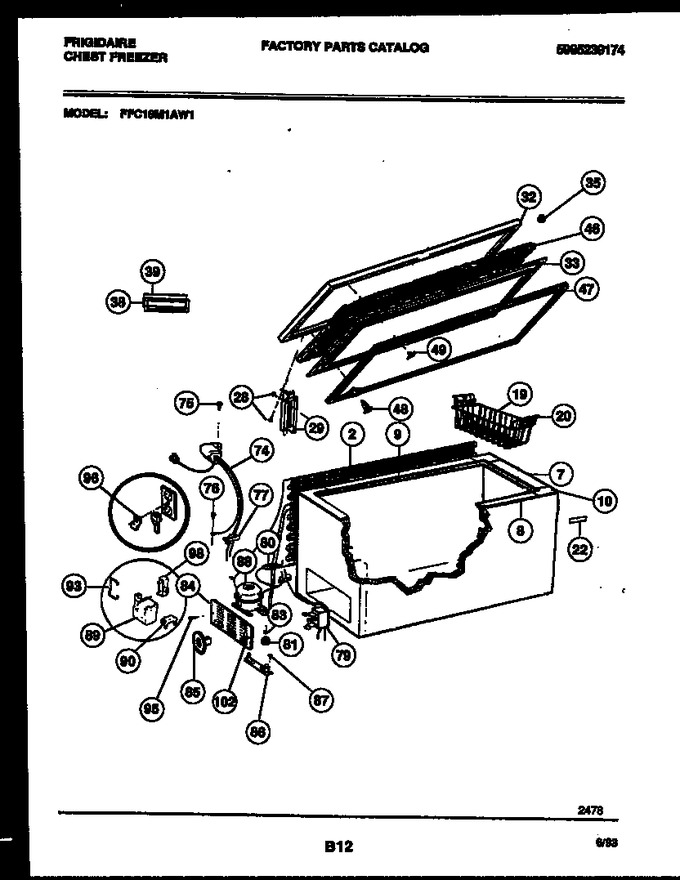

02 - Chest Freezer Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 5303280307 | Condenser (not Original Equipment-service Replacement On |
|
$ 640.71 | |||||
| 7 | 216110800 | Breaker Ends |
|
- | |||||
| 8 | 216111100 | Breaker Front |
|
- | |||||
| 9 | 216111100 | Breaker Rear |
|
- | |||||
| 10 | 216110700 | Breaker Corners |
|
$ 28.45 | |||||
| 19 | 216080600 | Basket (1) |
|
$ 95.29 | |||||
| 20 | 216208500 | Handle, Basket, Red |
|
- | |||||
| 22 | 215008601 | Nameplate |
|
- | |||||
| 28 | 5309950602 | Screw Hinge |
|
$ 5.30 | |||||
| 29 | 216035600 | Hinge |
|
- | |||||
| 32 | 5303925191 | Lid, Panel |
|
- | |||||
| 33 | 2160589061 | Panel, Inner Lid |
|
- | |||||
| 35 | 216141101 | Plug-lid |
|
$ 2.57 | |||||
| 38 | 216140100 | Handle |
|
- | |||||
| 39 | 08009392 | Gasket Handle |
|
- | |||||
| 46 | 5300128901 | Insulation Lid |
|
- | |||||
| 47 | 216080000 | Gasket, Lid, White |
|
- | |||||
| 48 | 5303212828 | Clip Panel (42) |
|
$ 16.63 | |||||
| 49 | 5309948955 | Clip Panel W/ Signal Light |
|
$ 11.53 | |||||
| 74 | 216158400 | Wiring Harness With Power Cord |
|
- | |||||
| 75 | 08009412 | Screw |
|
- | |||||
| 76 | 08009412 | Screw |
|
- | |||||
| 77 | 5303212614 | Clip Wires |
|
$ 2.88 | |||||
| 79 | 5304496560 | Control Temperature (Replaces: 5303212610) |
|
$ 49.62 | |||||
| 80 | 5303305677 | Drier (Replaces: 5308000027) |
|
Immediately | $ 31.67 | ||||
| 81 | 215175000 | Grommet, Compressor (4) |
|
- | |||||
| 83 | 216158300 | Clip, Compressor (4) |
|
- | |||||
| 84 | 216022700 | Access Panel |
|
- | |||||
| 85 | 216034505 | Control Knob |
|
- | |||||
| 86 | 5303212615 | Support, Compressor (2) |
|
- | |||||
| 87 | 08016776 | Screw-support (2) |
|
- | |||||
| 88 | 216128300 | Compressor |
|
- | |||||
| 89 | 216008900 | Relay |
|
- | |||||
| 90 | 216128400 | Overload |
|
- | |||||
| 93 | 215012000 | Clamp, Cover |
|
$ 2.63 | |||||
| 95 | 216858001 | Screw-access Panel (Replaces: 5303161215) |
|
Immediately | $ 10.85 | ||||
| 96 | 08016777 | Retainer Power Cord (not Original Equipment. Customer Pu |
|
- | |||||
| 98 | 5304464438 | Run Capacitor (Replaces: 216236200) |
|
Immediately | $ 35.38 | ||||
| 102 | 5303208663 | Plug-indicator |
|
- | |||||
| *79667 | 5303294326 | Ground Wire |
|
- |
