SELECT A DIAGRAM

01 - Cover

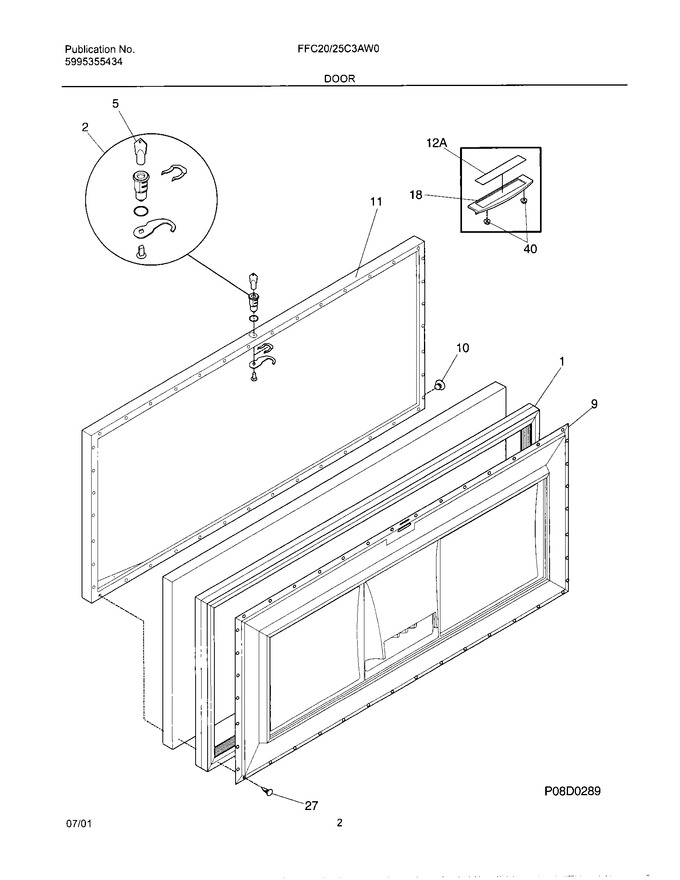

03 - Door


05 - Cabinet


07 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	216481401		Gasket-door, White				$ 165.32
2	5303925107		Lock Assy		Appelez-nous	-
5	297147700		Key, Lock   (Replaces: 216702900)			Immediately	$ 7.57
9	216059604		Panel-inner Lid, White				$ 121.17
10	216141101		Plug Button, White				$ 2.57
11	216130100		Panel-outer Door/lid,white		Appelez-nous	-
18	216446600		Handle				$ 43.42
27	5303212828		Clip,panel				$ 16.63
40	5309948647		Fastener, Handle		Appelez-nous	-
12A	216816800		Nameplate		Appelez-nous	-
NI	5303917276		Insulation				$ 330.91

    View Diagram in Separate Window       Print Part List
