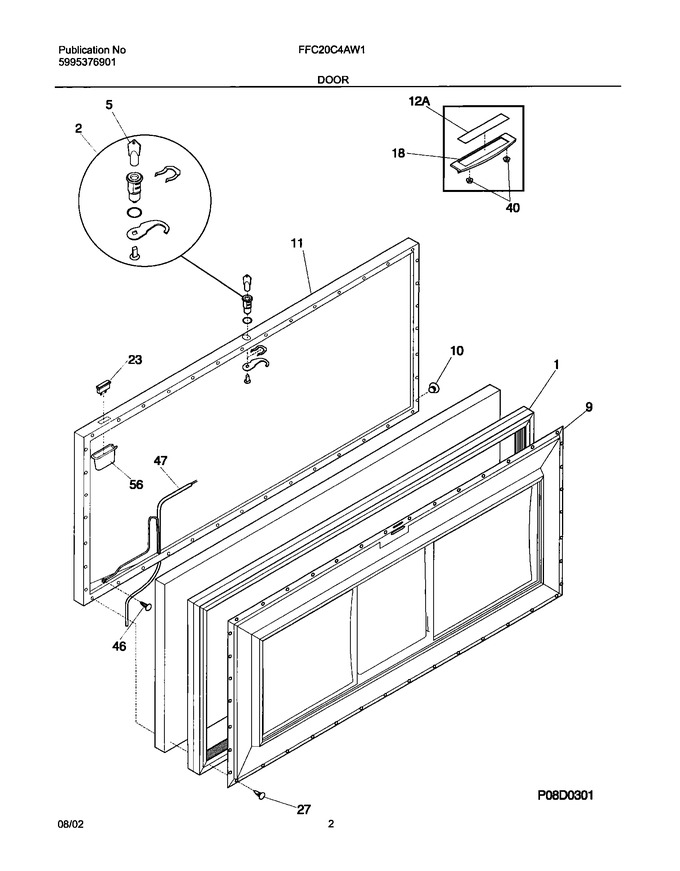

03 - Door


05 - Cabinet


07 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	216481401		Gasket-door, White				$ 165.32
2	5303925107		Lock Assy		Appelez-nous	-
9	216059604		Panel-inner Lid, White				$ 121.17
10	216141101		Plug Button, White				$ 2.57
11	216130113		Lid,white				$ 324.66
18	216446600		Handle				$ 43.42
23	5308002706		Light-signal,amber				$ 39.11
27	5303212828		Clip,panel Mtg				$ 16.63
40	5309948647		Fastener, Handle		Appelez-nous	-
46	08037851		Screw, Ph Type Ab, 8, 32 X 1/2, Wiring Harness				$ 3.57
47	216823700		Harness-lid/defrost				$ 62.21
56	216694200		Cap,sig Light Seal		Appelez-nous	-
12A	216816801		Nameplate				$ 29.61
F5	297147700		Key, Lock   (Replaces: 216702900)			Immediately	$ 7.57
NI	5303917276		Insulation				$ 330.91
