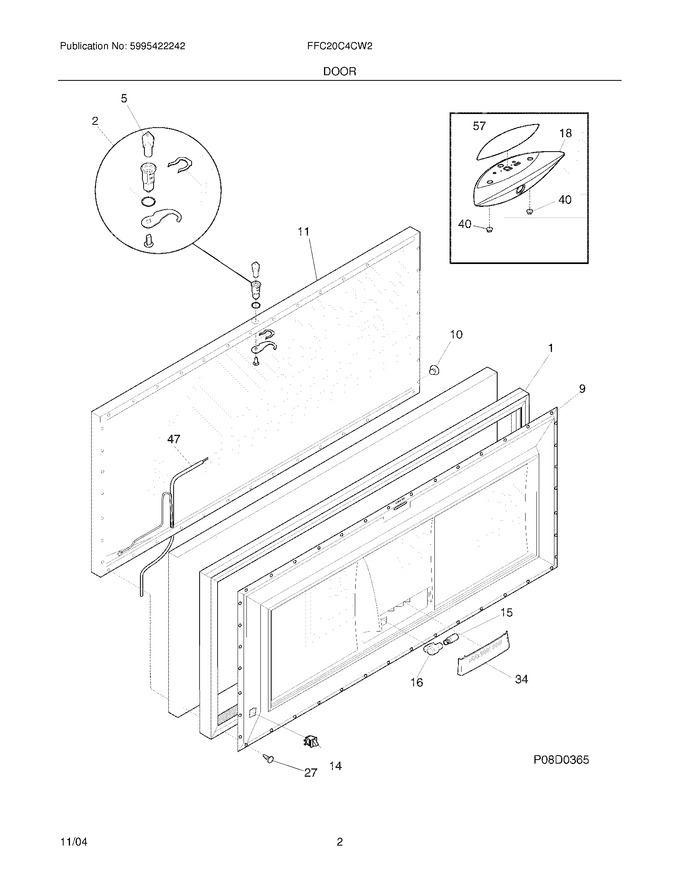

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	216481401		Gasket,lid Seal ,white				$ 165.32
2	5303925107		Lock Assy		Appelez-nous	-
9	216829504		Panel-inner Door,frzr				$ 172.66
10	216923001		Plug Button,1/4``,white				$ 9.87
11	216130122		Panel-outer Lid,white				$ 308.60
14	216822900		Switch,light/lamp ,ramp			Immediately	$ 70.16
15	5304517886		Light Bulb/lamp   (Replaces: 216846400)			Immediately	$ 73.06
16	297139501		Socket,light/lamp ,25 W   (Replaces: 216817600)				$ 19.52
18	216897600		Handle,white				$ 60.58
27	5303212828		Clip,panel Mtg				$ 16.63
34	5303296969		Shield,lid Lamp		Appelez-nous	-
40	216922700		Fastener,.330 Dia Stud ,handle ,(2)				$ 12.05
57	216899503		Overlay,white				$ 105.68
F47	216898800		Harness-lid		Appelez-nous	-
F5	297147700		Key, Lock   (Replaces: 216702900)			Immediately	$ 7.57
NI	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
NI	216858001		Screw,ph Truss Head ,8-18ab X 0.500   (Replaces: 5303161215)			Immediately	$ 10.85

    View Diagram in Separate Window       Print Part List
