SELECT A DIAGRAM

01 - Cover


02 - Door


03 - Cabinet

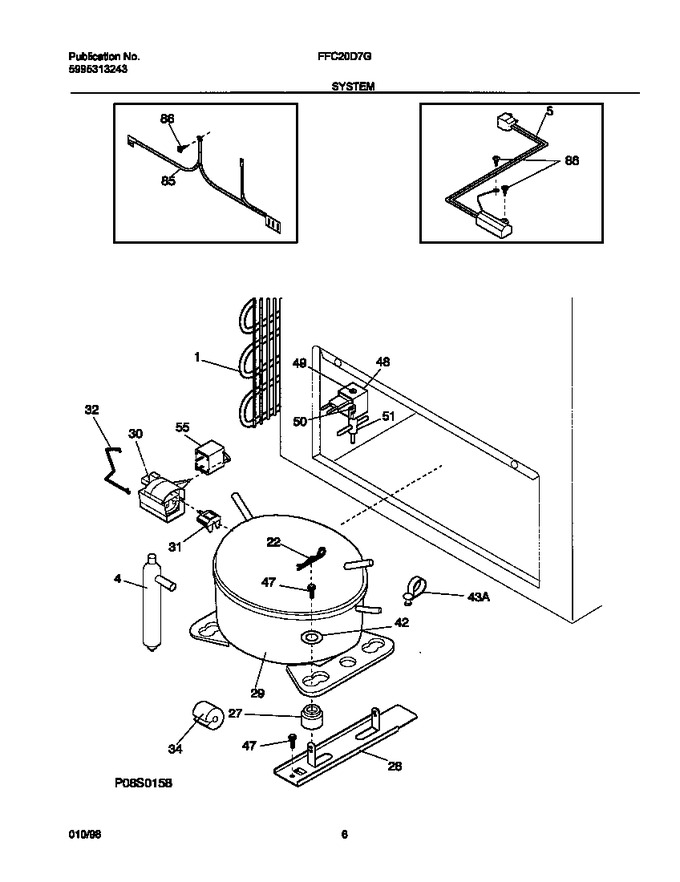

04 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303280307		Condenser				$ 640.71
4	5303305677		Drier-filter   (Replaces: 216634500)			Immediately	$ 31.67
5	216552800		Harness,electrical		Appelez-nous	-
22	216056400		Clip, Spring Mtg		Appelez-nous	-
27	216498900		Grommet,compressor   (Replaces: 5308002681)				$ 13.01
28	5303212615		Support, Compressor		Appelez-nous	-
29	5304511983		Compressor, R134a, With Overload   (Replaces: 5303925326)				$ 671.86
29	216470500		Compressor,service		Appelez-nous	-
30	216008900		Starter-ptc		Appelez-nous	-
31	216100108		Overload Protector				$ 38.12
32	216158300		Clip-starter		Appelez-nous	-
34	5303298960		Spacer, Compressor		Appelez-nous	-
42	216232700		Washer-flat		Appelez-nous	-
43	5303212614		Clip Harness				$ 2.88
47	08016776		Screw-compresor,ind Hex Wshr Hd ,10-32t X 1/2,support		Appelez-nous	-
48	3201514		Solenoid		Appelez-nous	-
49	3201513		Clip, Valve		Appelez-nous	-
50	216533700		Wire-ground,solenoid		Appelez-nous	-
51	216161900		Valve, Formed		Appelez-nous	-
55	5304464438		Capacitor-run   (Replaces: 216236200)			Immediately	$ 35.38
85	216533500		Wire,ground		Appelez-nous	-
86	216036600		Screw, Rwhd (gx, Ca), 8, 32 X 1/2		Appelez-nous	-
*01682	216478900		Fastener, Energy Guide		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
