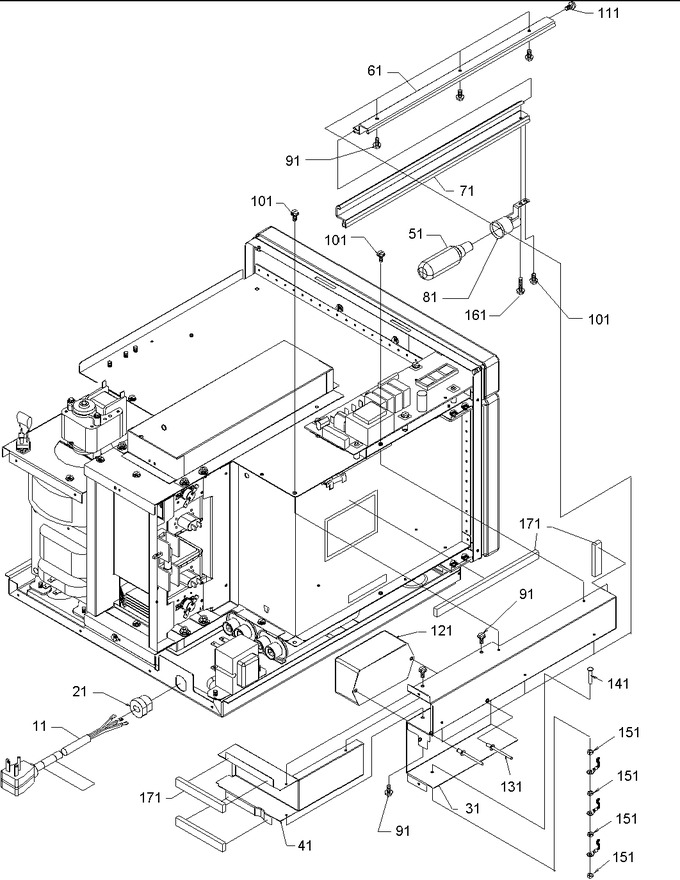

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 11 | B5669025 | Cord-power |
|
- | |||||
| 21 | M0370009 | Relief- Strain |
|
- | |||||
| 31 | 12135602 | Assy, Exhaust Duct Kit |
|
- | |||||
| 41 | 12135701 | Assy, Exhaust Duct Kit |
|
- | |||||
| 51 | M0360402 | Light Bulb (230/240 Vac) |
|
- | |||||
| 61 | 12133201 | Extrsn-lamp Access |
|
- | |||||
| 71 | 12133203 | Extrn-lamp Acs |
|
- | |||||
| 81 | 12163802 | Receptacle-export |
|
- | |||||
| 91 | WP489349 | Screw (Replaces: M0216515) |
|
Immediately | $ 7.09 | ||||
| 101 | WP90767 | Screw (Replaces: M0216529) |
|
Immediately | $ 7.04 | ||||
| 111 | M0253540 | Screw-tc |
|
- | |||||
| 121 | 12173001 | Filter Line |
|
- | |||||
| 131 | A4539618 | .156 Pop Rivet |
|
- | |||||
| 141 | M0293502 | Stud-self Clinch |
|
- | |||||
| 151 | M0282005 | Nut K |
|
$ 7.07 | |||||
| 161 | M0238921 | Screw, Sm |
|
- | |||||
| 171 | A3030302 | Gasket |
|
- |
