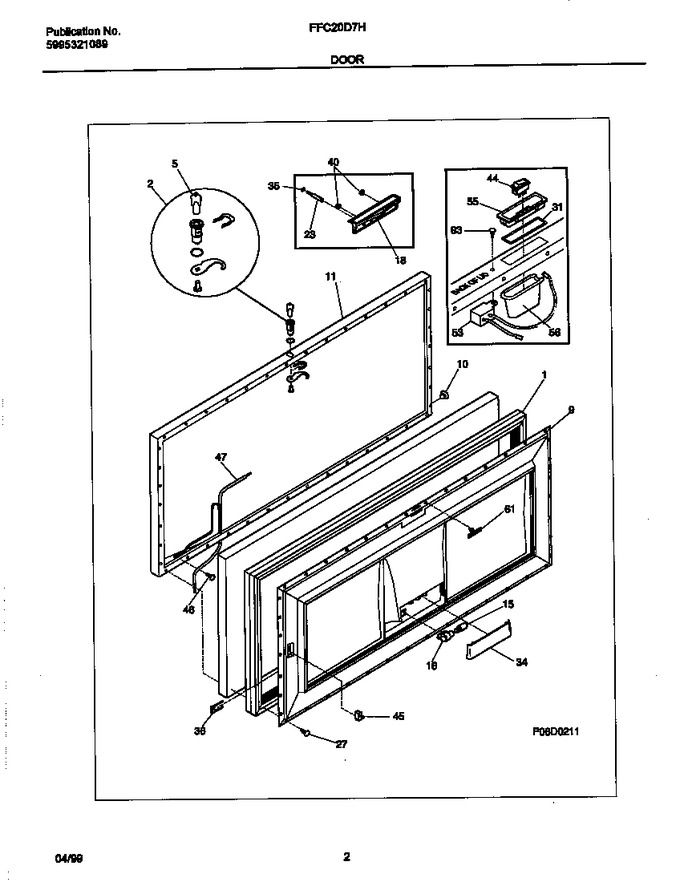

SELECT A DIAGRAM

01 - Cover


02 - Door


03 - Cabinet


04 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	216481401		Gasket-door, White				$ 165.32
2	5303925107		Lock Assy		Appelez-nous	-
5	297147700		Key, Lock   (Replaces: 216388700)			Immediately	$ 7.57
9	216059500		Panel-inner Door,frzr		Appelez-nous	-
10	216141101		Plug Button, White				$ 2.57
11	216130104		Panel-outer Lid,white		Appelez-nous	-
15	5304517886		Light Bulb/lamp   (Replaces: 216222700)			Immediately	$ 73.06
16	216039700		Socket, Light/lamp		Appelez-nous	-
18	216205004		Handle,white		Appelez-nous	-
23	216212700		Light-signal,amber		Appelez-nous	-
27	5303212828		Clip,panel				$ 16.63
31	08009392		Gasket, White		Appelez-nous	-
34	216160400		Shield-light		Appelez-nous	-
35	5303297015		Washer, Signal Light		Appelez-nous	-
36	5306599968		Plate, Backup, Light Switch		Appelez-nous	-
40	5309948647		Fastener, Handle		Appelez-nous	-
44	5303017178		Switch-rocker		Appelez-nous	-
45	3201509		Switch-defrost		Appelez-nous	-
46	08037851		Screw, Ph Type Ab, 8, 32 X 1/2, Wiring Harness				$ 3.57
47	2166005100		Harness-lid/defrost		Appelez-nous	-
53	5303208483		Buzzer, Alarm		Appelez-nous	-
55	216164000		Housing, Switch		Appelez-nous	-
56	5308037857		Sealing Cap		Appelez-nous	-
61	5309948955		Clip-panel				$ 11.53
93	216858001		Screw   (Replaces: 5303161215)			Immediately	$ 10.85
*87480	5303917276		Insulation				$ 330.91

    View Diagram in Separate Window       Print Part List
