SELECT A DIAGRAM

01 - Cover


03 - Door


05 - Cabinet

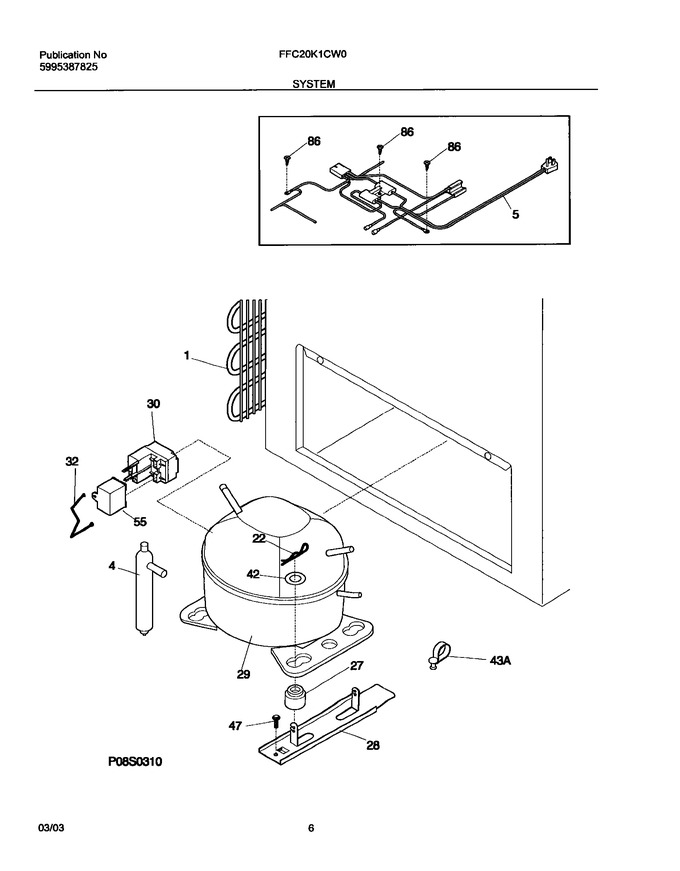

07 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
4	5303305677		Drier-filter   (Replaces: 216634500)			Immediately	$ 31.67
5	216806900		Harness-main				$ 182.65
22	216056400		Clip,compressor Mtg ,spring		Appelez-nous	-
27	216498900		Grommet,compressor   (Replaces: 5308002681)				$ 13.01
28	5303212615		Support, Compressor		Appelez-nous	-
29	216851800		Compressor,w/o Electricals		Appelez-nous	-
30	5304491584		Controller   (Replaces: 216649318)			Immediately	$ 101.35
32	216649100		Clamp,elec Cont Mtg ,compressor				$ 12.50
42	216232700		Washer,flat ,1``od X 0.531``id		Appelez-nous	-
47	216629601		Screw,hex Washer Head ,10-16 X 0.500 ,tapping   (Replaces: 216629600)				$ 13.01
86	216036600		Screw,ph Washer Head ,8-32ca X 0.500 ,thread Forming		Appelez-nous	-
43A	5303212614		Clip,harness Mount				$ 2.88
F1	5303280307		Condenser				$ 640.71
F55	218909912		Capacitor,run ,50/60 Hz ,220 Vac ,12 Microfarad   (Replaces: 216787800)			Immediately	$ 74.75
NI	5303298960		Spacer-tube,0.237`` Id		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
