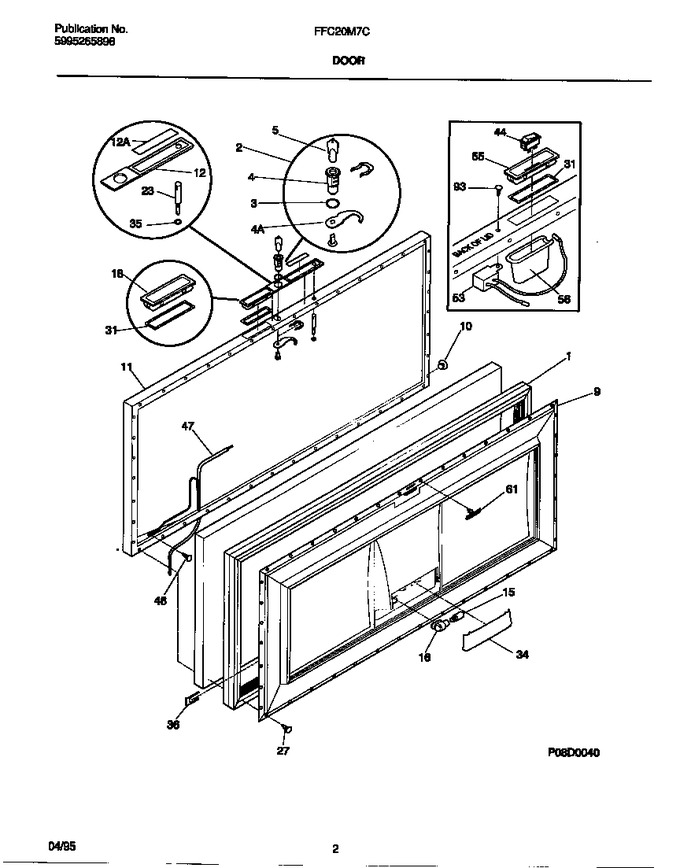

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	216080100		Gasket, Lid, White		Appelez-nous	-
2	5303925107		Lock Assy		Appelez-nous	-
3	5300114366		Washer		Appelez-nous	-
4	5300300791		Hook, Lock		Appelez-nous	-
4	5303283905		Cylinder, Lock		Appelez-nous	-
5	297147700		Key Lock   (Replaces: 5308037402)			Immediately	$ 7.57
9	216059704		Panel, Inner Lid, White				$ 339.62
10	08009395		Plug, Hole		Appelez-nous	-
11	216130111		Panel-outer Lid,white		Appelez-nous	-
12	216208100		Bezel, Nameplate		Appelez-nous	-
12	216208000		Insert-bezel		Appelez-nous	-
15	5304517886		Light Bulb/lamp   (Replaces: 216222700)			Immediately	$ 73.06
16	216039700		Socket, Light/lamp		Appelez-nous	-
18	216140200		Handle, Recessed, White		Appelez-nous	-
23	3200895		Light, Signal, Round, Amber		Appelez-nous	-
27	5303212828		Screw, Panel				$ 16.63
31	08009392		Gasket, White		Appelez-nous	-
34	216087901		Shield-light		Appelez-nous	-
35	5303297015		Washer, Signal Light		Appelez-nous	-
36	5306599968		Plate, Backup, Light Switch		Appelez-nous	-
44	5303017178		Switch-rocker		Appelez-nous	-
46	08037851		Screw, Ph Type Ab, 8, 32 X 1/2, Wiring Harness				$ 3.57
47	216375300		Harness-wire		Appelez-nous	-
53	5303208483		Buzzer, Alarm		Appelez-nous	-
55	216164000		Housing, Switch		Appelez-nous	-
56	5308037857		Sealing Cap		Appelez-nous	-
61	5309948955		Clip-panel				$ 11.53
93	216858001		Screw   (Replaces: 5303161215)			Immediately	$ 10.85
*01200	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
