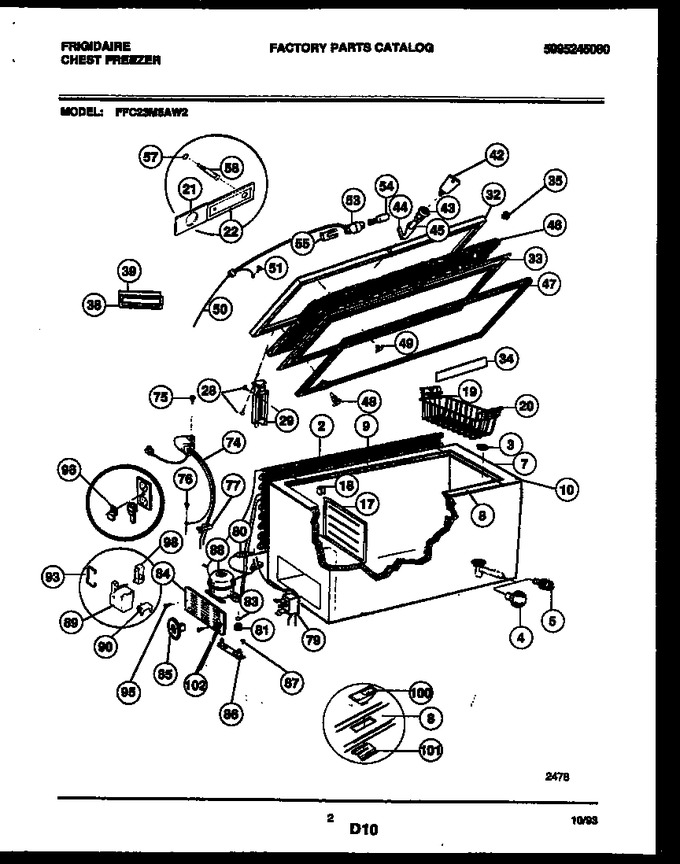

02 - Chest Freezer Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	5300300173		Condenser (not Original Equipment-service Replacement On		Appelez-nous	-
3	5306593887		Plug, Drain, Liner		Appelez-nous	-
4	5300128045		Plug-drain Shell		Appelez-nous	-
5	06594053		Adapter, Hose		Appelez-nous	-
7	216110800		Breaker Ends		Appelez-nous	-
8	216111900		Breaker Front		Appelez-nous	-
9	216111300		Breaker Rear		Appelez-nous	-
10	216110700		Breaker Corners				$ 28.45
17	216128200		Divider-drain Pan		Appelez-nous	-
18	5306594584		Supports Divider				$ 19.80
19	216080600		Basket (1)				$ 95.29
20	216208500		Handle, Basket, Red		Appelez-nous	-
21	216208100		Frame		Appelez-nous	-
22	216208000		Nameplate		Appelez-nous	-
28	5309950602		Screw Hinge				$ 5.30
29	216035500		Hinge		Appelez-nous	-
32	216130201		Lid-panel		Appelez-nous	-
33	216060604		Panel-inner Lid		Appelez-nous	-
34	216208600		Light Shield		Appelez-nous	-
35	216141100		Plug-lid		Appelez-nous	-
38	216140200		Handle		Appelez-nous	-
39	08009392		Insert Handle		Appelez-nous	-
42	297147700		Key Lock   (Replaces: 5308037402)			Immediately	$ 7.57
43	5303925107		Lock-complete		Appelez-nous	-
44	5300300791		Hook		Appelez-nous	-
45	5300114366		Washer-lock		Appelez-nous	-
46	5300128901		Insulation Lid		Appelez-nous	-
47	216080200		Gasket, Lid, White		Appelez-nous	-
48	5303212828		Clip Panel (50)				$ 16.63
49	5309948955		Clip-panel W/sig Light				$ 11.53
50	216040700		Wire Harness Lid		Appelez-nous	-
51	216858001		Screw-ground Wire   (Replaces: 5303161215)			Immediately	$ 10.85
53	216039700		Socket-light		Appelez-nous	-
54	5304517886		Bulb-120v 25w   (Replaces: 216222700)			Immediately	$ 73.06
55	5306599968		Retainer Socket		Appelez-nous	-
57	5308037857		Washer-sealing		Appelez-nous	-
58	3200895		Signal Light		Appelez-nous	-
74	216089500		Wiring Harness W/ Pwr Cord		Appelez-nous	-
75	08009412		Screw		Appelez-nous	-
76	08009412		Screw		Appelez-nous	-
77	5303212614		Clip Wires				$ 2.88
79	5304496560		Control Temperature   (Replaces: 5303212610)				$ 49.62
80	5303305677		Drier   (Replaces: 5308000027)			Immediately	$ 31.67
81	215175000		Grommet Compr (4)		Appelez-nous	-
83	216056400		Clip Compr (4)		Appelez-nous	-
84	216022700		Access Panel		Appelez-nous	-
85	216034505		Control Knob		Appelez-nous	-
86	5303212615		Support Compr (2)		Appelez-nous	-
87	08016776		Screw-support (2)		Appelez-nous	-
88	216128300		Compressor		Appelez-nous	-
89	216008900		Relay		Appelez-nous	-
90	216128400		Overload		Appelez-nous	-
93	216158300		Clamp		Appelez-nous	-
95	216858001		Screw-access Panel   (Replaces: 5303161215)			Immediately	$ 10.85
96	08016777		Retainer Power Cord		Appelez-nous	-
98	5304464438		Run Capacitor   (Replaces: 216236200)			Immediately	$ 35.38
100	5303208488		Latch Catch		Appelez-nous	-
101	216080800		Support-latch		Appelez-nous	-
102	5303208663		Plug-indicator		Appelez-nous	-
