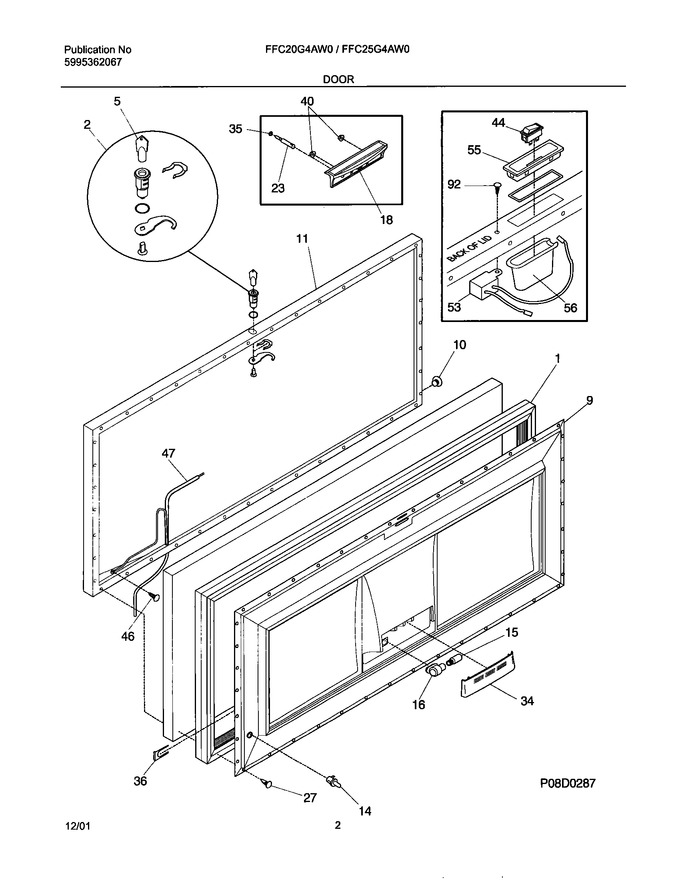

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	216469311		Gasket-door, White   (Replaces: 216469301)				$ 187.21
2	5303925107		Lock Assy		Appelez-nous	-
9	216688404		Panel-inner Lid,white		Appelez-nous	-
10	216141101		Plug Button, White				$ 2.57
11	216032415		Lid,white		Appelez-nous	-
14	216822900		Light/lamp, Ramp			Immediately	$ 70.16
16	216684000		Socket-light/lamp		Appelez-nous	-
18	216205004		Handle,white		Appelez-nous	-
23	216212700		Light-signal,amber		Appelez-nous	-
27	5303212828		Clip,panel				$ 16.63
34	216160400		Shield-light		Appelez-nous	-
35	5303297015		Washer, Signal Light		Appelez-nous	-
36	5306599968		Plate, Backup, Light Switch		Appelez-nous	-
40	5309948647		Fastener, Handle		Appelez-nous	-
46	08037851		Screw, Ph Type Ab, 8, 32 X 1/2, Wiring Harness				$ 3.57
55	216164000		Housing, Switch		Appelez-nous	-
56	216694200		Sealing Cap		Appelez-nous	-
92	131420300		Screw, Cr Truss Head, 8-18ab X 0.750				$ 13.46
F15	5304517886		Lamp,light Bulb ,40 W ,120 V   (Replaces: 216608600)			Immediately	$ 73.06
F44	5303017178		Switch-rocker		Appelez-nous	-
F47	216792400		Harness-lid		Appelez-nous	-
F5	297147700		Key, Lock   (Replaces: 216702900)			Immediately	$ 7.57
F53	5303208483		Buzzer, Alarm		Appelez-nous	-
NI	5303917276		Insulation				$ 330.91
NI	216140200		Handle, Recessed, White		Appelez-nous	-
