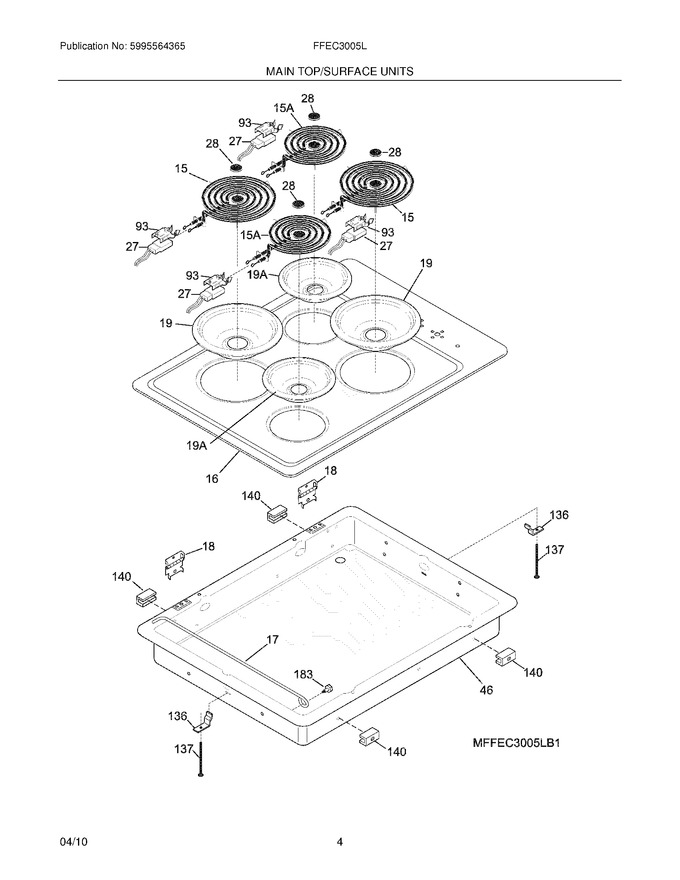

05 - Maintop/surface Units


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
16	305452159		Maintop Assembly,black ,w/graphics		Appelez-nous	-
17	3016817		Rod,maintop Support		Appelez-nous	-
18	318074310		Hinge-main Top, (2)				$ 51.98
28	5303301461		Medallion, Surface Element		Appelez-nous	-
46	318077401		Burner Box		Appelez-nous	-
93	318122500		Support,terminal Block ,(4)		Appelez-nous	-
136	5303935029		Support				$ 61.79
137	5303323138		Screw,10-24x1/2				$ 14.13
140	318216000		Spacer,installation				$ 54.34
183	5304410665		Screw,10-32 X 5/8 ,(8)		Appelez-nous	-
F15	5308011964		Element,surface ,large/8 Inch ,(2) ,medallion Incl				$ 209.08
F15A	316439802		Element,surface ,small/6 Inch ,1250w ,medallion Incl   (Replaces: 5304437241)			Immediately	$ 192.78
F19	316048413		Pan,surface Element ,large ,chrome   (Replaces: 318067056)			Immediately	$ 9.85
F19A	316048414		Pan,surface Element ,small ,chrome   (Replaces: 318067046)			Immediately	$ 16.11
F27	318223407		Terminal Block,surface Element ,21`` ,white Leads				$ 81.27
F27	318223409		Terminal Block,surface Element ,24`` ,yellow Leads				$ 47.02
F27	318223423		Terminal Block,surface Element ,36`` ,brown Leads				$ 88.22
F27	318223424		Terminal Block,surface Element ,36`` ,orange Leads				$ 72.35
FNI	318078525		Box & Wires Assy		Appelez-nous	-
NI	5303311532		Screw,6-32 X 1/4`` ,back		Appelez-nous	-
NI	5303308449		Fastener,wire Tie		Appelez-nous	-
NI	5303300195		Screw,10-32 X 0.375 ,(2)		Appelez-nous	-
