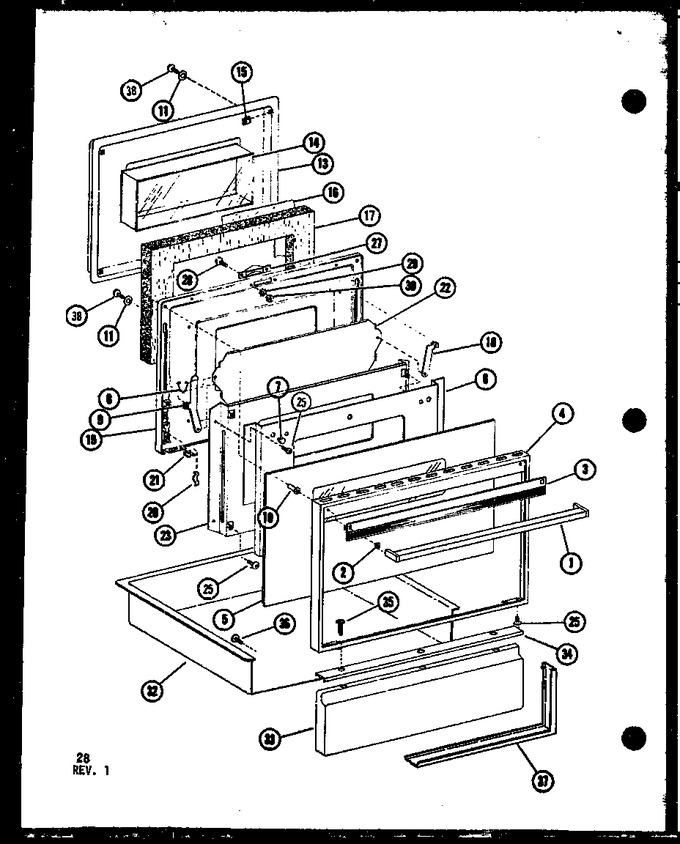

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	D8535902		Handle		Appelez-nous	-
2	A4406402		Pad, Handle		Appelez-nous	-
3	D8507802		Ext Door Trim		Appelez-nous	-
4	D8507701		Door Frame (chrome)		Appelez-nous	-
5	D8507902		Glass Panel Kit		Appelez-nous	-
6	D8507601		Heat Shield		Appelez-nous	-
7	A4406501		Bumper-glass		Appelez-nous	-
8	C2705101		Spring-shutter		Appelez-nous	-
9	B5003801		Arm-shutter Lh		Appelez-nous	-
10	A4406301		Spacer		Appelez-nous	-
11	M0271201		Washer, Padder		Appelez-nous	-
13	D8507102		Door Plug Weld		Appelez-nous	-
14	D8507301		Window		Appelez-nous	-
15	A4407601		Speed Nut		Appelez-nous	-
16	A4406601		Foil-door Plug		Appelez-nous	-
17	B5001101		Insulation, Door Plug		Appelez-nous	-
18	B5003901		Arm-shutter Rh		Appelez-nous	-
19	D8506901		Inner Panel		Appelez-nous	-
20	A4407701		Spring		Appelez-nous	-
21	M0119601		Clip-speed Nut		Appelez-nous	-
22	D8507501		Shutter		Appelez-nous	-
23	D8507401		Heat Shield		Appelez-nous	-
25	W11233072		Use M0214931   (Replaces: M0211531)			Immediately	$ 12.62
27	B5003601		Latch Plate Assy		Appelez-nous	-
28	M0203218		Screw		Appelez-nous	-
29	M0272803		Lock Washer		Appelez-nous	-
30	WP486255		Nut Keps K   (Replaces: M0281003)				$ 5.54
32	C2713903		Drawer Pan Pntd K		Appelez-nous	-
33	C2725202		Wld Drawer-w K		Appelez-nous	-
33	C2725205		Wld Drawer-g K		Appelez-nous	-
33	C2725204		Wld Drawer-a K		Appelez-nous	-
33	C2725206		Wld Drawer-l K		Appelez-nous	-
33	C2725203		Wld Drawer-c K		Appelez-nous	-
34	D8514301		Handle, Drawer		Appelez-nous	-
35	M0230630		Screw		Appelez-nous	-
36	M0217224		Screw		Appelez-nous	-
38	M0203051		Screw		Appelez-nous	-
