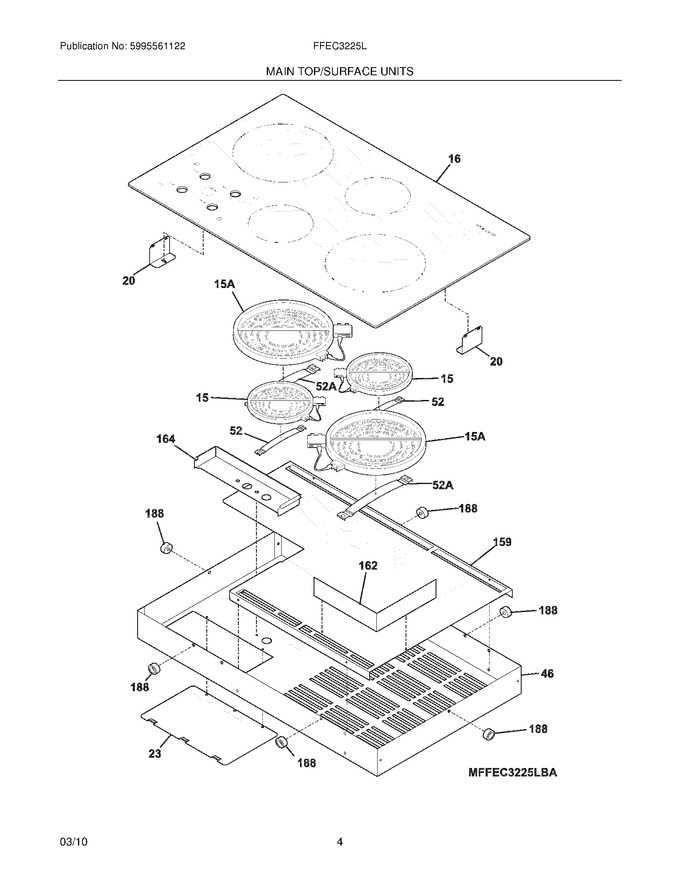

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
16	318342660		Main Top Assembly,w/glass ,black		Appelez-nous	-
20	318121902		Bracket,retainer				$ 47.03
23	5303297401		Panel,service		Appelez-nous	-
46	318077273		Burner Box		Appelez-nous	-
52	318122006		Spring,element Mtg ,small				$ 66.25
159	318125103		Deflector		Appelez-nous	-
162	318125200		Deflector		Appelez-nous	-
164	318125302		Plate,connection		Appelez-nous	-
188	318531702		Spacer,(6)				$ 9.93
52A	318122010		Spring,element Mtg ,3000w				$ 62.51
F15	318178110		Element,surface ,6`` ,1200w ,(2) ,radiant   (Replaces: 318198830)			Immediately	$ 122.86
F15A	316135401		Element,surface ,9`` ,2500 W   (Replaces: 318198835)			Immediately	$ 80.96
F188	131202300		Screw,8 X 5/8 ,(2)   (Replaces: 3131048)			Immediately	$ 13.46
F188	5303288566		Screw,8 X 1/4 ,(4)   (Replaces: 5303323130)				$ 2.12
FNI	318394496		Box & Wires Assy		Appelez-nous	-
FNI	318402417		Harness,wiring ,main		Appelez-nous	-
FNI	318231877		Harness,wiring ,limiter		Appelez-nous	-
NI	5303323140		Screw,ground ,10-32 X 0.375		Appelez-nous	-
NI	318163601		Cleaner-cooktop				$ 0.42
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
NI	5303307980		Screw,8-32 X 0.437 ,(8)			Immediately	$ 14.18
