SELECT A DIAGRAM

01 - Cover Sheet

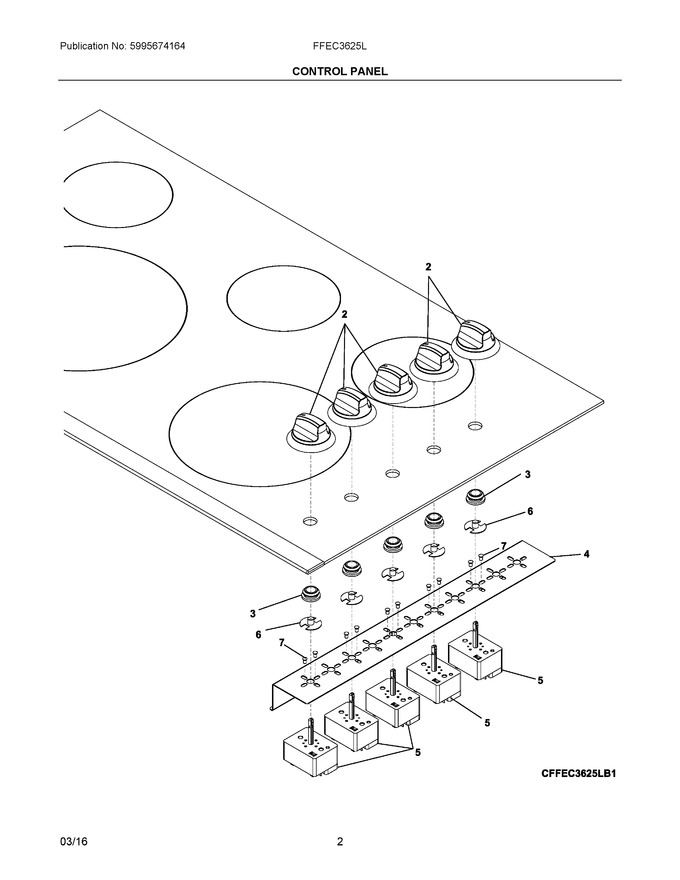

02 - Control Panel


03 - Main Top/surface Units


04 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	316544006		Knob, Control, White				$ 152.38
3	387316100		Bushing, Knob, Sealing				$ 13.46
4	305521800		Bracket, Support, Switch Mtg		Appelez-nous	-
5	5304526190		Switch, Infinite, Single Control   (Replaces: 305458905)			Immediately	$ 90.50
6	318146010		Bushing, Switch				$ 17.16
7	5304536454		Screw, Switch Mtg., M4 X 7   (Replaces: 319224001)				$ 2.98
NI	318163601		Cleaner-cooktop				$ 0.42

    View Diagram in Separate Window       Print Part List
