SELECT A DIAGRAM

01 - Freezer Compartment


02 - Freezer Door


03 - Fresh Food Compartment


04 - Fresh Food Door


05 - Unit Compartment & System

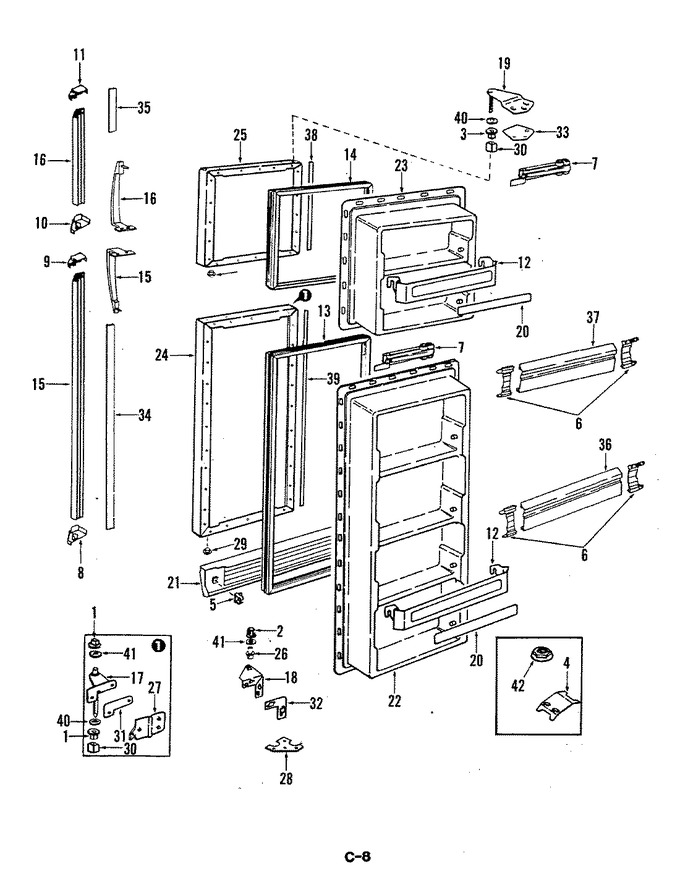

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	52614-1		Bracket, Closer		Appelez-nous	-
1	66036-2		Bushing, Upper Hinge		Appelez-nous	-
2	66034-1		Bushing, Lower Hinge				$ 19.76
3	66036-1		Bushing,top/center Hinge		Appelez-nous	-
5	52854-3		Clip, Kickplate		Appelez-nous	-
7	54485-1		Closer, Door		Appelez-nous	-
8	57947-1		End Cap		Appelez-nous	-
9	57947-2		End Cap		Appelez-nous	-
10	57947-2		End Cap		Appelez-nous	-
11	57947-1		End Cap		Appelez-nous	-
12	65701-8		Shelf Front		Appelez-nous	-
13	53712-15		Gasket		Appelez-nous	-
14	53712-8		Gasket		Appelez-nous	-
15	56835-37		Handle		Appelez-nous	-
16	56835-38		Handle		Appelez-nous	-
17	54390-6		Hinge		Appelez-nous	-
18	60630-10		Hiner, Lower (chrome)				$ 26.18
19	53709-16		Upper Hinge,(chrome)		Appelez-nous	-
20	65571-9		Insert		Appelez-nous	-
21	56477-8		Kickplate		Appelez-nous	-
22	65696-4		Liner, Door		Appelez-nous	-
23	65695-4		Liner, Door		Appelez-nous	-
24	55583-45-HW		Outer Panel		Appelez-nous	-
25	55583-28-HW		Panel, Door		Appelez-nous	-
26	53672-1		Pin, Lower Hinge		Appelez-nous	-
27	54031-2		Tapping Plate		Appelez-nous	-
28	65964-1		Tapping Plate, Lower Hinge		Appelez-nous	-
29	9986-122		Screw		Appelez-nous	-
29	403062-5		Screw		Appelez-nous	-
29	9986-110		Screw		Appelez-nous	-
29	495034-900		Plug Button, Door		Appelez-nous	-
29	WP3-24838-048		Screw   (Replaces: 9986-87)				$ 7.00
29	402077-7		Screw		Appelez-nous	-
29	9986-12		Screw,door Liner		Appelez-nous	-
30	55990-1		Seal Sleeve		Appelez-nous	-
31	54386-4		Spacer		Appelez-nous	-
32	60626-1		Shim, Lower Hinge		Appelez-nous	-
33	65031-1		Shim, Upper Hinge		Appelez-nous	-
39	420063-1		Washer		Appelez-nous	-
40	52185-2		Washer		Appelez-nous	-
41	54233-2		Washer		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
