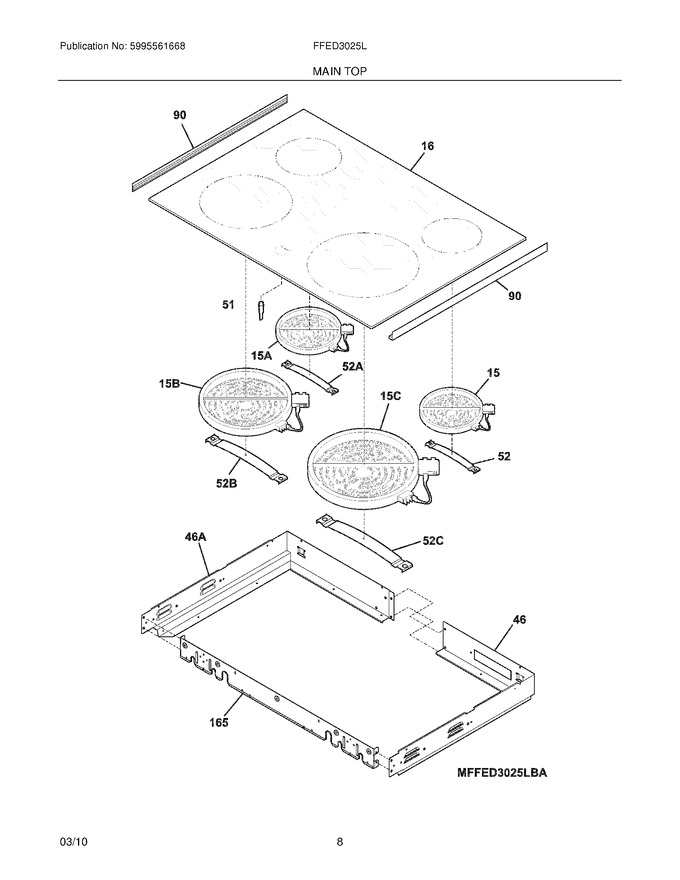

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
03 - Backguard
05 - Body
07 - Maintop
09 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 16 | 318223689 | Main Top,glass Assy. ,white |
|
$ 364.63 | |||||
| 46 | 318568200 | Box,burner ,rh |
|
$ 23.99 | |||||
| 52 | 318122006 | Spring,element Mtg ,small |
|
$ 66.25 | |||||
| 90 | 318368001 | Channel,glass Protector ,(2) |
|
$ 22.98 | |||||
| 165 | 318227520 | Plate,mounting |
|
$ 47.99 | |||||
| 46A | 318568201 | Box,burner ,lh |
|
$ 28.93 | |||||
| 52A | 318122004 | Spring-element Mtg,700w & 2100w |
|
$ 55.76 | |||||
| 52B | 318122010 | Spring,element Mtg ,3000w |
|
$ 62.51 | |||||
| 52C | 318122011 | Spring,element Mtg ,1200w/1800w |
|
$ 62.14 | |||||
| F15 | 318178110 | Element,surface ,6`` ,1200w ,(2) ,radiant (Replaces: 318198830) |
|
Immediately | $ 122.86 | ||||
| F15A | 318198851 | Element,surface ,7`` ,1500 W (Replaces: 318198836) |
|
$ 188.07 | |||||
| F15B | 316135401 | Element,surface ,9`` ,2500w ,radiant (Replaces: 316224201) |
|
Immediately | $ 80.96 | ||||
| F15C | 316291200 | Element,surface ,12`` ,2700 W (Replaces: 318198827) |
|
Immediately | $ 235.31 | ||||
| F51 | 318044831 | Light,indicator ,natural ,(4) |
|
$ 16.69 | |||||
| FNI | 318228969 | Harness,wiring ,cooktop |
|
$ 69.41 | |||||
| FNI | 318231876 | Harness,wiring ,pilot Light |
|
$ 31.90 | |||||
| FNI | 318532147 | Ground Wire,w/terminal |
|
- | |||||
| NI | 5303300265 | Screw,8-18 X 1/2 ,(4) |
|
$ 15.17 | |||||
| NI | 5303323136 | Screw-ground |
|
- | |||||
| NI | 318163601 | Cleaner-cooktop |
|
$ 0.42 | |||||
| NI | 316519700 | Screw,no.8-18 X 3/8 (Replaces: 5304454881) |
|
$ 10.02 |
