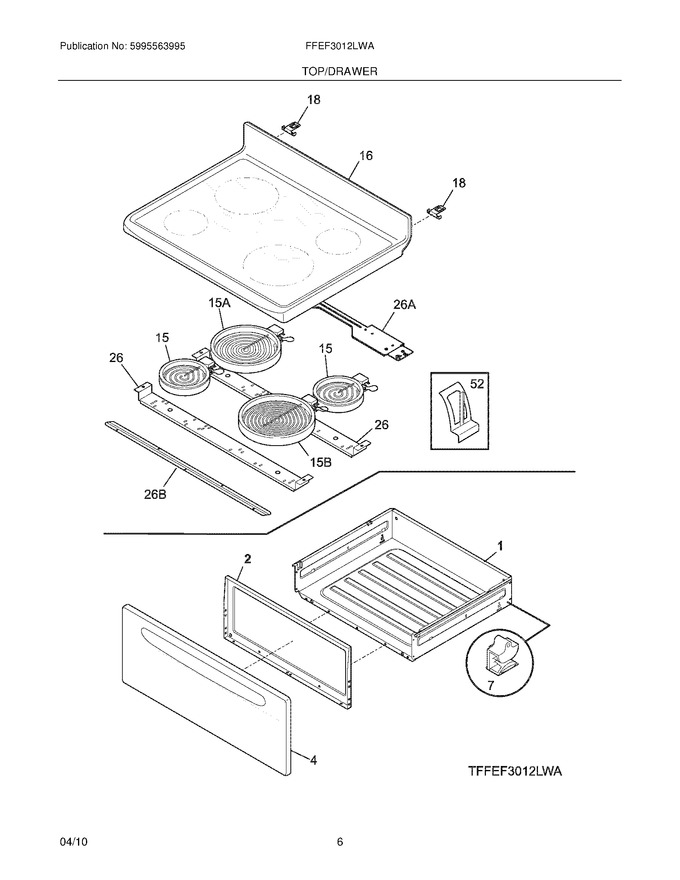

07 - Top/drawer
09 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 316011503 | Drawer |
|
$ 131.51 | |||||
| 2 | 316231500 | Liner,drawer |
|
$ 54.40 | |||||
| 4 | 316231305 | Panel,drawer ,white |
|
$ 55.80 | |||||
| 7 | 3051163 | Glide,drawer ,rear |
|
Immediately | $ 19.41 | ||||
| 16 | 316531984 | Maintop,steel/glass ,white/black |
|
$ 448.65 | |||||
| 18 | 316436600 | Hinge Bracket,maintop ,(2) |
|
$ 45.36 | |||||
| 26 | 316427600 | Channel,element Support ,(2) |
|
- | |||||
| 52 | 316461700 | Clip,element Mtg |
|
$ 12.05 | |||||
| 26A | 316498200 | Bracket-support,chassis ,aluminum |
|
$ 52.33 | |||||
| 26B | 316214202 | Bracket,chassis Support ,front |
|
$ 25.41 | |||||
| F15 | 318178110 | Element,surface ,6`` ,1200 ,(2) ,radiant |
|
Immediately | $ 122.86 | ||||
| F15A | 316281900 | Element-surface,coil ,8 Inch ,2200w |
|
$ 245.61 | |||||
| F15B | 316135401 | Element,surface ,9`` ,2500 W ,radiant |
|
Immediately | $ 80.96 | ||||
| FNI | 316580419 | Harness,wiring ,surface Units |
|
$ 191.86 | |||||
| NI | 5308014215 | Screw`6-20 X 0.312 |
|
$ 2.28 | |||||
| NI | 316468100 | Cleaner,smoothtop ,w/sponge |
|
$ 4.88 | |||||
| NI | 316021109 | Screw,hex Head Cup Pt ,8-18 X 0.375 ,black (Replaces: 316021105) |
|
Immediately | $ 27.50 | ||||
| NI | 316021109 | Screw`8-18 X 0.5 ,chrome |
|
Immediately | $ 27.50 | ||||
| NI | 316021109 | Screw,8-18 X 0.5 ,black (Replaces: 316021110) |
|
Immediately | $ 27.50 | ||||
| NI | 316519700 | Screw,cup Pt ,8-18 X 0.375 ,chrome (Replaces: 316021108) |
|
$ 10.02 |
