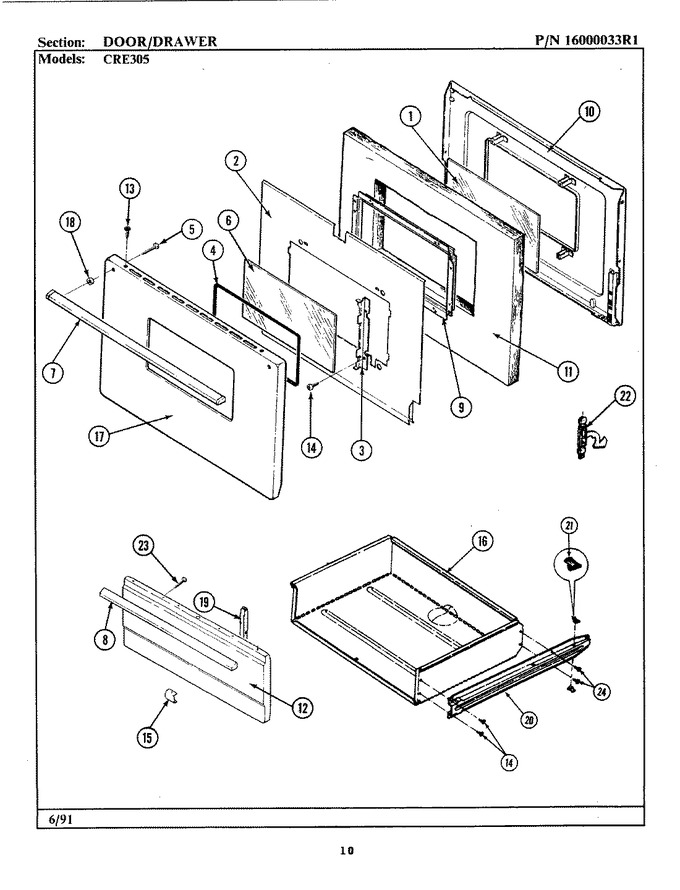

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	7902P035-60		Glass, Door Inner	00	Appelez-nous	-
2	3601F094-51		Baffle, Oven Door	00	Appelez-nous	-
3	3804F095-80		Retainer, Glass	00	Appelez-nous	-
4	7201P017-60		Gasket, Window	00			$ 52.69
5	WP3387230		Screw, Clamp   (Replaces: 7101P080-60)	00		Immediately	$ 7.69
6	7902P051-60		Glass	00	Appelez-nous	-
7	7701P084-60		Handle, Drawer	00	Appelez-nous	-
8	7701P084-60		Handle, Drawer	00	Appelez-nous	-
9	3603F013-80		Frame, Window----na	00	Appelez-nous	-
10	2402W154-19		Lining, Oven Door	09	Appelez-nous	-
10	2402W091-23		Lining Assy, Ov Dr	00	Appelez-nous	-
11	7002P012-60		Insulation, Door	00	Appelez-nous	-
12	2416F029-71		Panel, Drawer Wht	00	Appelez-nous	-
12	2416F029-74		Panel, Drawer Alm	00	Appelez-nous	-
12	2416F029-70		Panel, Drawer (blk)	00	Appelez-nous	-
13	WP74003976		Screw W/washer   (Replaces: 7101P124-60)	00			$ 6.47
14	WP7101P126-60		Screw   (Replaces: 7101P061-60)	00		Immediately	$ 6.85
15	3801F031-51		Bracket	00	Appelez-nous	-
16	3405F008-80		Drawer, Service	00	Appelez-nous	-
17	2401F042-71		Panel, Door (wht)	00	Appelez-nous	-
17	2401F042-74		Panel, Door (alm)	00	Appelez-nous	-
18	8010P020-60		Spacer, Door Handle	00	Appelez-nous	-
19	3802F044-51		Brace, Drawer	00	Appelez-nous	-
20	3406F026-80		Runner, Inner	05	Appelez-nous	-
20	3406F020-80		Runner, Inner	00	Appelez-nous	-
21	8016P004-60		Glide, Drawer	00	Appelez-nous	-
21	8016P004-60		Glide, Drawer	05	Appelez-nous	-
21	8016P009-60		Glide, Drawer	05	Appelez-nous	-
22	3420A033-34		Stop, Oven Door	00	Appelez-nous	-
23	74002481		Screw, Handle   (Replaces: 7101P283-60)	00			$ 5.82
24	7101P287-60		Screw, Metal Grounding	00			$ 12.03

    View Diagram in Separate Window       Print Part List
