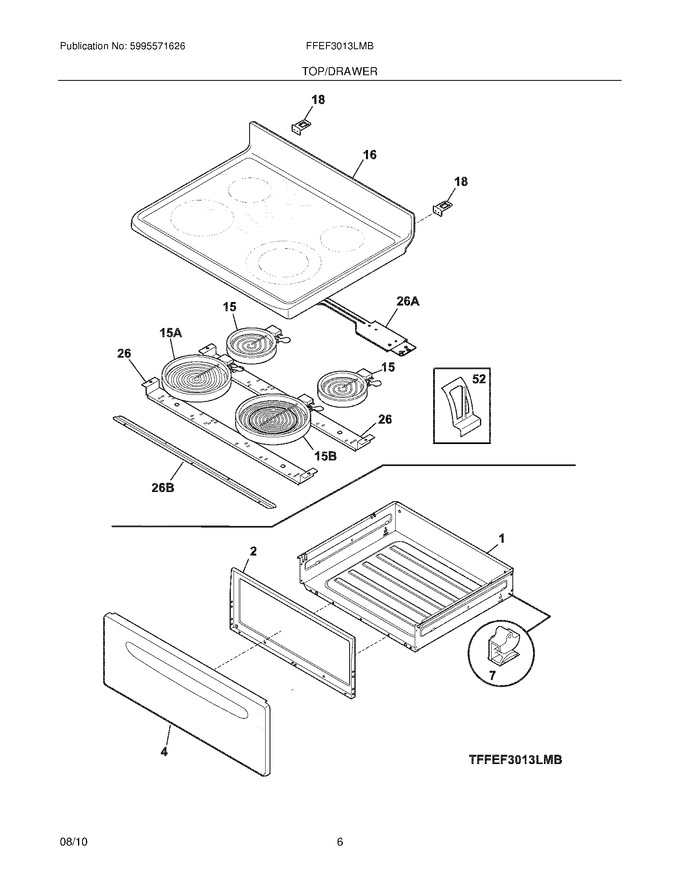

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316011503		Drawer				$ 131.51
2	316231500		Liner,drawer				$ 54.40
4	316231319		Panel-drawer,silver Mist		Appelez-nous	-
7	3051163		Glide,drawer ,rear			Immediately	$ 19.41
16	316531948		Maintop,steel/glass ,black				$ 497.94
18	316580800		Bracket-hinge,main Top			Immediately	$ 9.86
26	316427600		Channel,element Support ,(2)		Appelez-nous	-
52	316461700		Clip,element Mtg				$ 12.05
26A	316498200		Bracket-support,chassis ,aluminum				$ 52.33
26B	316214202		Bracket,chassis Support ,front				$ 25.41
F15	318178110		Element,surface ,6`` ,1200 ,(2) ,radiant			Immediately	$ 122.86
F15A	316555800		Element,dual ,9``/6`` ,surface ,1200w/2500w,radiant   (Replaces: 316418401)			Immediately	$ 138.90
F15B	316135401		Element,surface ,9`` ,2500 W ,radiant			Immediately	$ 80.96
FNI	316580434		Harness,wiring ,surface Units		Appelez-nous	-
NI	5308014215		Screw`6-20 X 0.312				$ 2.28
NI	316468100		Cleaner,smoothtop ,w/sponge				$ 4.88
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw`8-18 X 0.5 ,chrome			Immediately	$ 27.50
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316089500		Screw, 10-16 X .486				$ 13.46
NI	316519700		Screw,cup Pt ,8-18 X 0.375 ,chrome   (Replaces: 316021108)				$ 10.02
