SELECT A DIAGRAM

01 - Body


02 - Control Panel


03 - Door


04 - Drawer


05 - Top Assembly

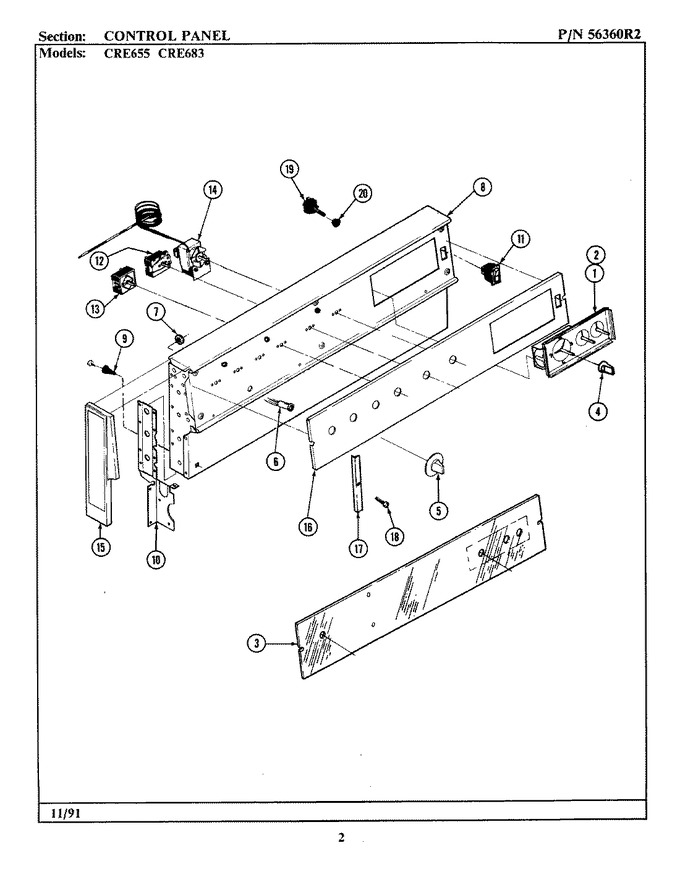

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	7601P135-60		Clock, Automatic	00	Appelez-nous	-
1	7902P109-60		Glass, Clock	00	Appelez-nous	-
4	7711P359-60		Knob, Clock	00	Appelez-nous	-
5	WP7711P354-60		Knob, Thermostat   (Replaces: 7711P354-60)	00			$ 17.81
5	W10856104		Knob, Control   (Replaces: 7737P024-60)	00			$ 26.57
5	7711P357-60		Knob, Selector	00			$ 15.74
6	7407P079-60		Light, Signal	00	Appelez-nous	-
6	7730P007-60		Lens, Indicator Light	00	Appelez-nous	-
6	WP74004153		Light, Indicator   (Replaces: 7407P077-60)	00		Immediately	$ 8.02
7	7103P053-60		Nut, Push-on End Cap	00	Appelez-nous	-
8	2601W281-81		Panel, Wht	00	Appelez-nous	-
8	WP854334		Seal, Rubber   (Replaces: 7208P011-60)	00			$ 11.95
9	8010P069-60		Spacer, Hinge (main Top)	00			$ 8.57
10	3807W224-80		Support, End (left)	00	Appelez-nous	-
10	3807W225-80		Support, End (right)	00	Appelez-nous	-
10	WPW10068250		Screw   (Replaces: 7101P074-60)	00			$ 3.66
11	7403P067-60		Switch, Rocker (blk)	00			$ 91.35
12	7403P037-60		Switch, Selector	00	Appelez-nous	-
12	7101P280-60		Screw W/washer (blk)	00	Appelez-nous	-
13	7403P263-60		Switch, Infinite (2400w)	16	Appelez-nous	-
13	W11122006		Switch, Inf. 250v   (Replaces: 7403P181-60)	00			$ 145.12
13	7101P280-60		Screw W/washer (blk)	00	Appelez-nous	-
13	WP7403P238-60		Switch, Infinite (1400w)   (Replaces: 7403P262-60)	16		Immediately	$ 57.78
14	7101P101-60		Screw, Thermostat	00	Appelez-nous	-
14	7404P050-60		Thermostat	00	Appelez-nous	-
15	7726P010-60		End Cap, Backguard (lt-chr)	00	Appelez-nous	-
15	7726P021-60		End Cap, Backguard (rt-chr)	00	Appelez-nous	-
16	7703P219-60		Trim, Inlay Bkgd	00	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
