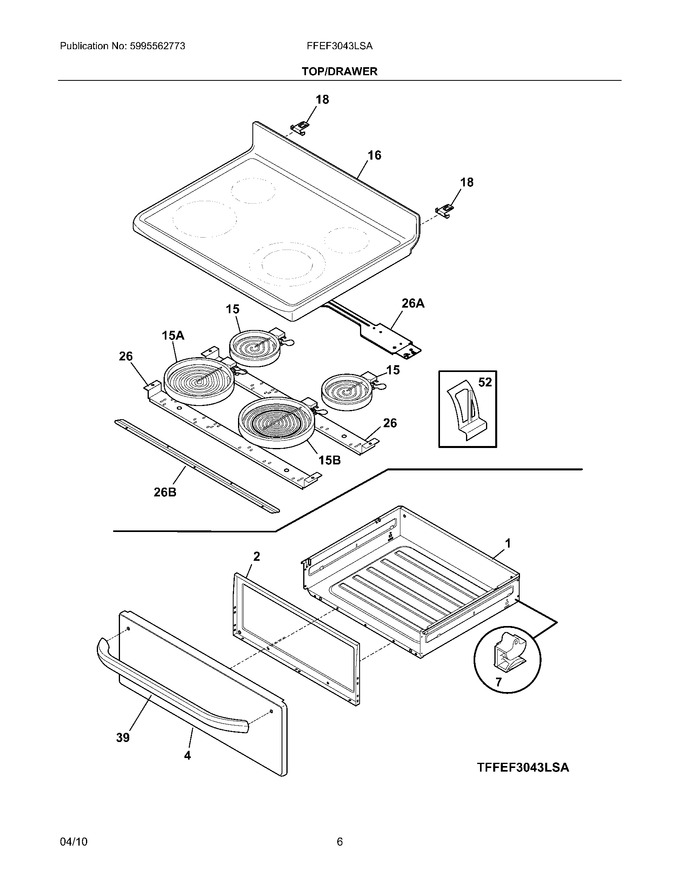

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316011503		Range Storage Drawer Assembly				$ 131.51
2	316231500		Range Storage Drawer Front Panel Liner				$ 54.40
4	5303935277		Drawer Panel		Appelez-nous	-
7	3051163		Range Drawer Glide			Immediately	$ 19.41
15	318178110		Range Radiant Surface Element, 6-in			Immediately	$ 122.86
16	316531948		Range Main Top (black)				$ 497.94
18	316436600		Range Oven Door Hinge Support Bracket				$ 45.36
26	316427600		Channel		Appelez-nous	-
39	316558201		Oven Handle   (Replaces: 316558200)				$ 174.23
52	316461700		Range Radiant Element Mounting Clip				$ 12.05
15A	316135401		Range Radiant Surface Elment, 9-in   (Replaces: 316224201)			Immediately	$ 80.96
15B	316555800		Range Dual Radiant Surface Element   (Replaces: 316418401)			Immediately	$ 138.90
26A	316498200		Range Upper Frame Support Bracket				$ 52.33
26B	316214202		Range Radiant Element Support Bracket, Front				$ 25.41
NI	316519700		Range Screw   (Replaces: 316021108)				$ 10.02
NI	316089500		Range Screw				$ 13.46
NI	316580404		Range Main Top Wire Harness		Appelez-nous	-
NI	5308014215		Range Screw				$ 2.28
NI	316468100		Cleaner				$ 4.88
NI	316021109		Range Screw			Immediately	$ 27.50
NI	316021109		Range Screw   (Replaces: 316021110)			Immediately	$ 27.50
NI	316021109		Range Hex Head Screw, #8-18 X 3/8-in   (Replaces: 316021105)			Immediately	$ 27.50
