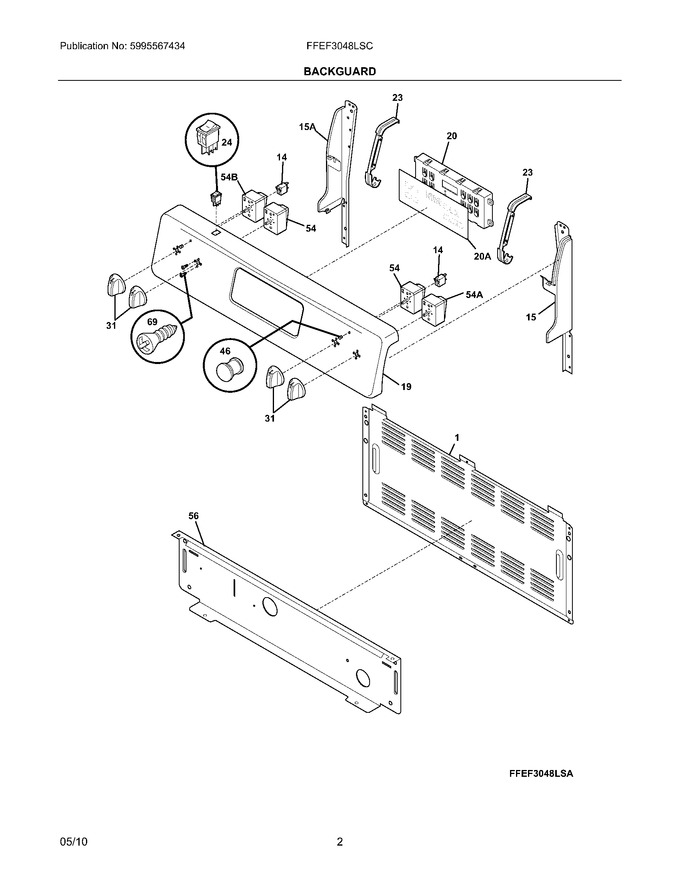

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 316281802 | Shield,backguard ,rear Wall (Replaces: 316416100) |
|
$ 57.64 | |||||
| 14 | 316022500 | Light/lamp, Indicator, 125 V |
|
Immediately | $ 53.57 | ||||
| 15 | 316411405 | Support,backguard ,black ,rh |
|
$ 83.95 | |||||
| 19 | 316456530 | Panel,backguard ,black/stainless ,w/overlay |
|
$ 275.71 | |||||
| 23 | 316441600 | Bracket-clock Mtg,black |
|
$ 20.48 | |||||
| 31 | 316543801 | Knob,control ,black ,(4) |
|
Immediately | $ 55.38 | ||||
| 46 | 316437900 | Lens,indicator Light |
|
$ 11.45 | |||||
| 56 | 316234045 | Shield,backguard ,black ,inner (Replaces: 316234013) |
|
$ 66.74 | |||||
| 69 | 5303288565 | Screw,truss Sqdr `8-32 X 3/16 ,switch Mtg |
|
$ 3.12 | |||||
| 15A | 316411404 | Support,backguard ,black ,lh |
|
$ 83.95 | |||||
| 20A | 316419141 | Overlay,clock ,black ,es300 |
|
Immediately | $ 56.87 | ||||
| F20 | 5304509493 | Clock/timer,electronic ,es300 (Replaces: 316557115) |
|
Immediately | $ 212.37 | ||||
| F24 | 5304527841 | Switch,rocker ,black ,oven Light (Replaces: 316448700) |
|
Immediately | $ 11.38 | ||||
| F54 | 316436000 | Switch,infinite ,small Element |
|
Immediately | $ 80.34 | ||||
| F54A | 316436001 | Switch,infinite ,large Element |
|
Immediately | $ 51.68 | ||||
| F54B | 316238201 | Switch,infinite Radian ,dual (Replaces: 316238200) |
|
Immediately | $ 89.00 | ||||
| NI | 316089500 | Screw, 10-16 X .486 |
|
$ 13.46 | |||||
| NI | 316021109 | Screw,hex Head Cup Pt ,8-18 X 0.375 ,black (Replaces: 316021105) |
|
Immediately | $ 27.50 | ||||
| NI | 316021109 | Screw`8-18 X 0.5 ,chrome |
|
Immediately | $ 27.50 | ||||
| NI | 316021109 | Screw,8-18 X 0.5 ,black (Replaces: 316021110) |
|
Immediately | $ 27.50 |
