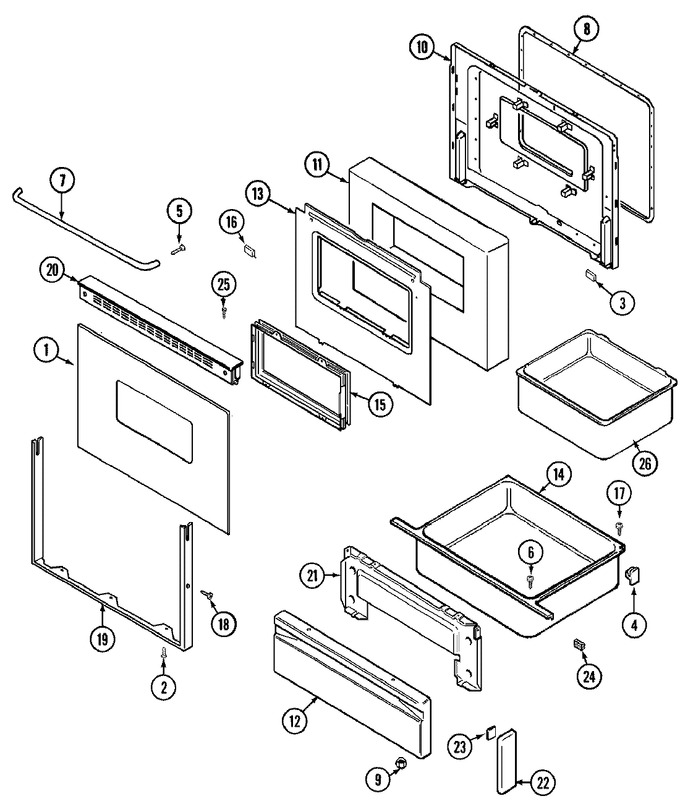

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Body
02 - Control Panel
03 - Door/drawer (cre7600bdx)
04 - Door/drawer (ser. Pre. 13)
05 - Oven/base
06 - Top Assembly
07 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7902P361-60 | Glass, Door (outer/blk) | 10 |
|
- | ||||
| 2 | W11233072 | Screw (Replaces: 74001280) | 10 |
|
Immediately | $ 12.62 | |||
| 3 | 8010P085-60 | Spacer, Rubber | 10 |
|
- | ||||
| 4 | 8004P026-60 | Support, Drawer (rear) | 10 |
|
$ 9.29 | ||||
| 5 | 7101P326-60 | Screw | 10 |
|
- | ||||
| 6 | WP4159193 | Screw (Replaces: 7101P115-60) | 10 |
|
$ 4.29 | ||||
| 7 | 7701P149-60 | Handle, Oven Door (blk) | 10 |
|
- | ||||
| 8 | WP7212P043-60 | Seal, Door (Replaces: 7212P043-60) | 10 |
|
Immediately | $ 56.83 | |||
| 9 | 7103P136-60 | Nut, Snap | 10 |
|
- | ||||
| 10 | 2402W203-19 | Lining, Door | 10 |
|
- | ||||
| 11 | 4804F050-60 | Insulation, Door 2`` | 10 |
|
- | ||||
| 12 | 2416F050-71 | Panel, Drawer (wht) | 10 |
|
- | ||||
| 13 | 3601F236-51 | Baffle, Door | 10 |
|
- | ||||
| 14 | 3405F019-80 | Drawer, Storage | 10 |
|
- | ||||
| 15 | 7907P016-60 | Window Asy. | 10 |
|
- | ||||
| 16 | WP854334 | Seal, Rubber (Replaces: 7208P011-60) | 10 |
|
$ 11.95 | ||||
| 17 | W11233072 | Screw (Replaces: 7101P290-60) | 10 |
|
Immediately | $ 12.62 | |||
| 18 | 7101P319-60 | Screw | 10 |
|
- | ||||
| 19 | 7706P293-60 | Frame, Door (stnls) | 10 |
|
- | ||||
| 20 | 7744P128-60 | Trim, Door (upper-blk) | 10 |
|
- | ||||
| 21 | 2404F043-80 | Lining | 10 |
|
- | ||||
| 22 | 7744P093-60 | End Cap (wht) | 10 |
|
- | ||||
| 23 | 8270P095-60 | Tape, Double Sided | 10 |
|
- | ||||
| 24 | WP854334 | Spacer, Rubber (Replaces: 8010P086-60) | 10 |
|
$ 11.95 | ||||
| 25 | WP98008545 | Screw (1/2``) (Replaces: 7101P040-60) | 10 |
|
$ 15.94 | ||||
| 26 | 8312P073-60 | Basket, Drawer | 10 |
|
- |
