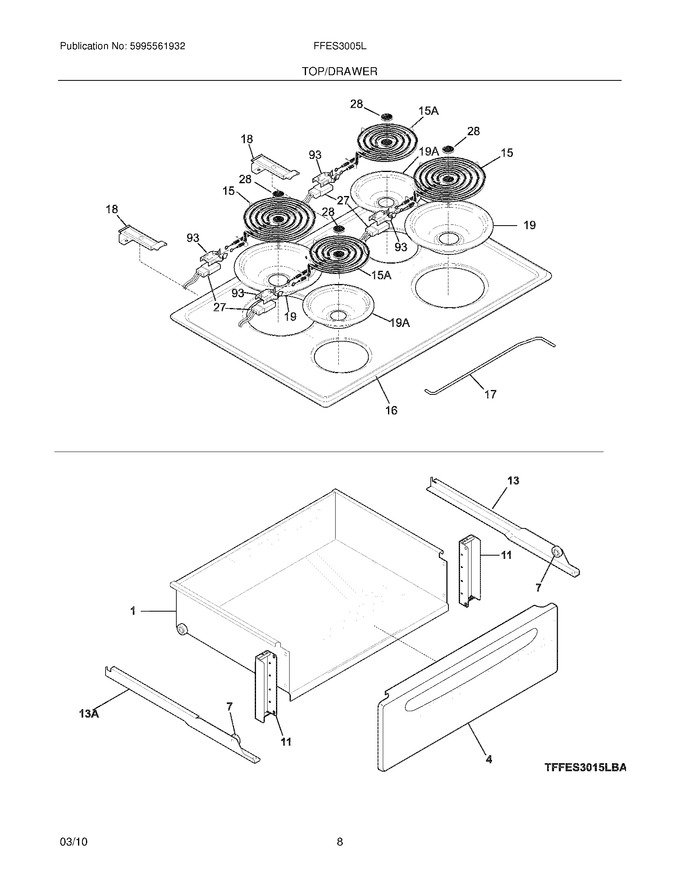

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304505701		Drawer   (Replaces: 318107105)			Immediately	$ 143.39
4	318298906		Panel,drawer ,white ,front				$ 145.30
7	318332200		Roller,nylon		Appelez-nous	-
11	318298601		Bracket,drawer Support ,(2)		Appelez-nous	-
13	318018100		Channel-drawer,rh			Immediately	$ 30.01
16	318225607		Main Top,white				$ 247.17
17	3051554		Rod,support ,main Top Panel		Appelez-nous	-
18	318227710		Hinge,maintop ,(2)		Appelez-nous	-
93	318366410		Support,terminal Block ,(4)				$ 13.47
13A	318018101		Channel-drawer,lh				$ 63.11
F15	316442301		Element,surface ,8`` ,large   (Replaces: 318372214)			Immediately	$ 44.39
F15A	318372211		Element,surface ,6`` ,small			Immediately	$ 45.14
F19	316048413		Pan-surface Element,chrome ,large/8 Inch			Immediately	$ 9.85
F19A	316048414		Pan-surface Element,chrome ,small/6 Inch			Immediately	$ 16.11
FNI	318532147		Ground Wire,w/terminal		Appelez-nous	-
FNI	318301002		Wiring Harness,surface Units		Appelez-nous	-
NI	5303323137		Screw,8-32 X 1/4   (Replaces: 5303305528)				$ 11.88
NI	5303311306		Screw,8-18 X 0.375 ,(6)		Appelez-nous	-
NI	5303300265		Screw,8-18 X 1/2 ,(4)				$ 15.17
NI	5304417153		Screw,shoulder ,8-18 X 1/2 ,(4)		Appelez-nous	-
NI	5303288566		Screw,8 X 1/4 ,(4)   (Replaces: 5303323130)				$ 2.12
NI	5303323136		Screw-ground		Appelez-nous	-
NI	5303131766		Screw,6-32 X 0.375 ,top Trim				$ 10.87
NI	134178901		Screw,8-18 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	316519700		Screw,no.8-18 X 3/8   (Replaces: 5304454881)				$ 10.02

    View Diagram in Separate Window       Print Part List
