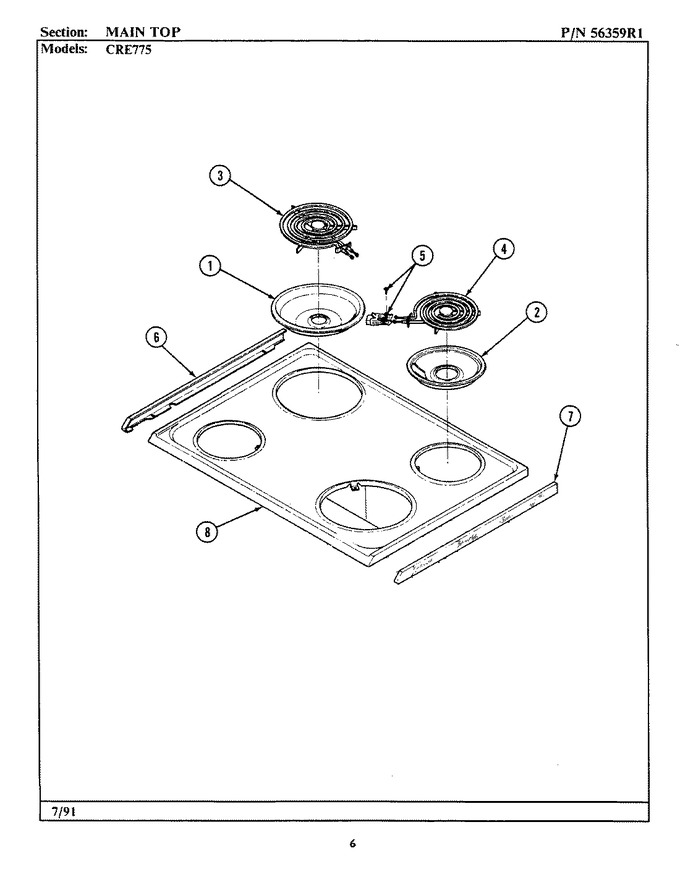

06 - Main Top (cre775)
07 - Oven
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10196405 | Bowl, Drip (8``) (Replaces: 7725P001-60) | 00 |
|
Immediately | $ 15.56 | |||
| 1 | 19950051A | Ring (8``) (prcln Bowl) (Replaces: 7720P126-60) | 01 |
|
$ 14.92 | ||||
| 1 | WP74001479 | Bowl, Drip Giant (blk Porc.) (Replaces: 7725P012-60) | 01 |
|
$ 17.35 | ||||
| 1 | 19950051A | Ring, Trim (8``) (Replaces: 7744P054-60) | 08 |
|
$ 14.92 | ||||
| 2 | 7744P053-60 | Ring, Trim (6``) | 08 |
|
- | ||||
| 2 | 7725P013-60 | Bowl, Drip (6`` W/hole)(blk) | 01 |
|
$ 22.22 | ||||
| 2 | WPW10196406 | Bowl, Drip (6``) (Replaces: 7725P002-60) | 00 |
|
Immediately | $ 12.05 | |||
| 2 | 7720P125-60 | Trim, Ring Small 6`` | 01 |
|
- | ||||
| 3 | WPW10259865 | Element (8``) (Replaces: 7406P063-60) | 03 |
|
Immediately | $ 105.92 | |||
| 3 | WPW10259865 | Element (8``) (Replaces: 7406P059-60) | 01 |
|
Immediately | $ 105.92 | |||
| 3 | WPW10259865 | Element (8``) (Replaces: 7406P070-60) | 18 |
|
Immediately | $ 105.92 | |||
| 3 | WPW10259865 | Element (8``) (Replaces: 7406P059-60) | 11 |
|
Immediately | $ 105.92 | |||
| 3 | WP3191454 | Element (8``) (Replaces: 7406P055-60) | 00 |
|
$ 163.63 | ||||
| 4 | WP660532 | Element (6``) (Replaces: 7406P054-60) | 00 |
|
Immediately | $ 36.90 | |||
| 4 | WPW10259868 | Element (6``) (Replaces: 7406P060-60) | 11 |
|
Immediately | $ 112.28 | |||
| 4 | WPW10259868 | Element (6``) (Replaces: 7406P060-60) | 01 |
|
Immediately | $ 112.28 | |||
| 4 | WPW10259868 | Element (6``) (Replaces: 7406P069-60) | 18 |
|
Immediately | $ 112.28 | |||
| 4 | WPW10259868 | Element (6``) (Replaces: 7406P062-60) | 03 |
|
Immediately | $ 112.28 | |||
| 5 | 12001676 | Kit, Receptacle (Replaces: 1430306K) | 00 |
|
Immediately | $ 28.45 | |||
| 6 | 7720P046-60 | Trim, Main Top (left) | 00 |
|
- | ||||
| 6 | 7746P025-60 | Trim, Main Top (left) | 02 |
|
- | ||||
| 7 | 7746P026-60 | Trim, Main Top (right) | 02 |
|
- | ||||
| 7 | 7720P049-60 | Trim, Main Top (right) | 00 |
|
- | ||||
| 7 | M0282009 | Nut (Replaces: 7103P064-60) | 00 |
|
$ 12.06 | ||||
| 7 | WP7101P072-60 | Screw (Replaces: 7101P072-60) | 00 |
|
$ 6.77 | ||||
| 8 | WP4159193 | Screw (Replaces: 7118P004-60) | 00 |
|
$ 4.29 | ||||
| 8 | 3802F029-80 | Brace, Main Top | 00 |
|
- | ||||
| 8 | 2002W028-84 | Top Assy, Main | 00 |
|
- | ||||
| 8 | 2002W028-81 | Top, Main (white) | 00 |
|
- |
