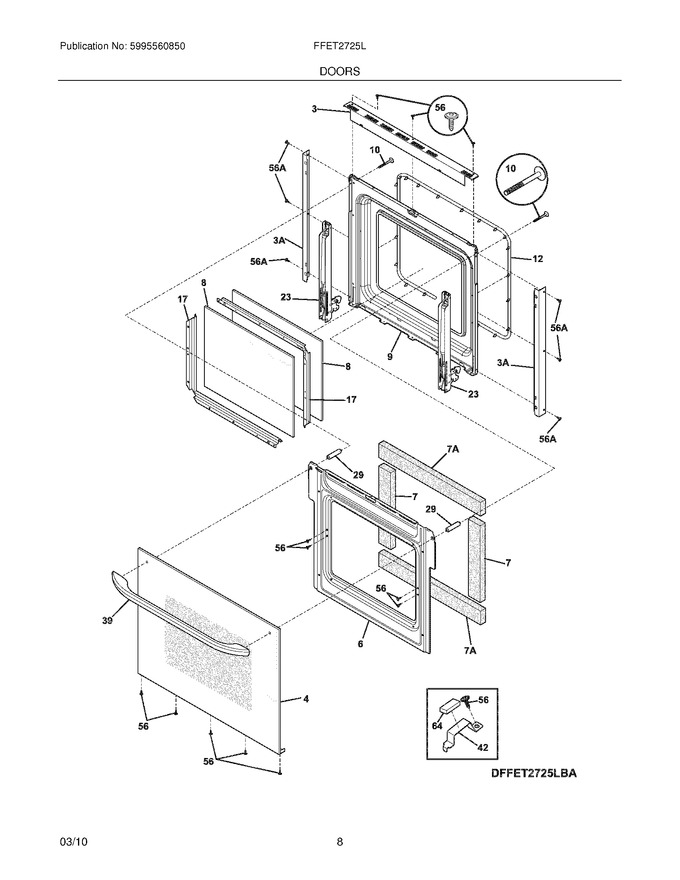

09 - Doors


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	318260211		Trim,oven Door ,black ,upper		Appelez-nous	-
4	318299520		Glass Assy.,door ,black ,outer ,w/trim				$ 214.52
6	318260510		Baffle,door		Appelez-nous	-
7	318372017		Insulation,door ,(2)   (Replaces: 318372000)				$ 16.30
8	318212200		Glass,oven Door ,heat Barrier				$ 113.17
9	318259652		Liner,door ,upper Oven		Appelez-nous	-
10	5304453593		Screw,handle Mtg.				$ 10.53
12	318053126		Seal,door ,upper Oven				$ 75.55
17	318264700		Spacer,glass ,(2)		Appelez-nous	-
23	318567108		Hinge,door ,lower Oven ,(2)		Appelez-nous	-
29	318014405		Spacer,door		Appelez-nous	-
39	318919401		Handle,door ,black		Appelez-nous	-
42	318382302		Bracket,glass Retainer ,(4)   (Replaces: 318382301)				$ 50.81
56	5304436875		Screw,8-18 X 1/2,black				$ 14.41
64	318165800		Spacer				$ 17.72
3A	318260401		Trim,oven Door ,side ,(2)				$ 51.66
56A	5304476599		Screw,8-18 X 3/8 ,(4)				$ 3.36
7A	318372001		Insulation,door ,20.5 X 2.375 ,(2)		Appelez-nous	-
NI	5304461333		Screw,10-32 X 17/32			Immediately	$ 13.46
