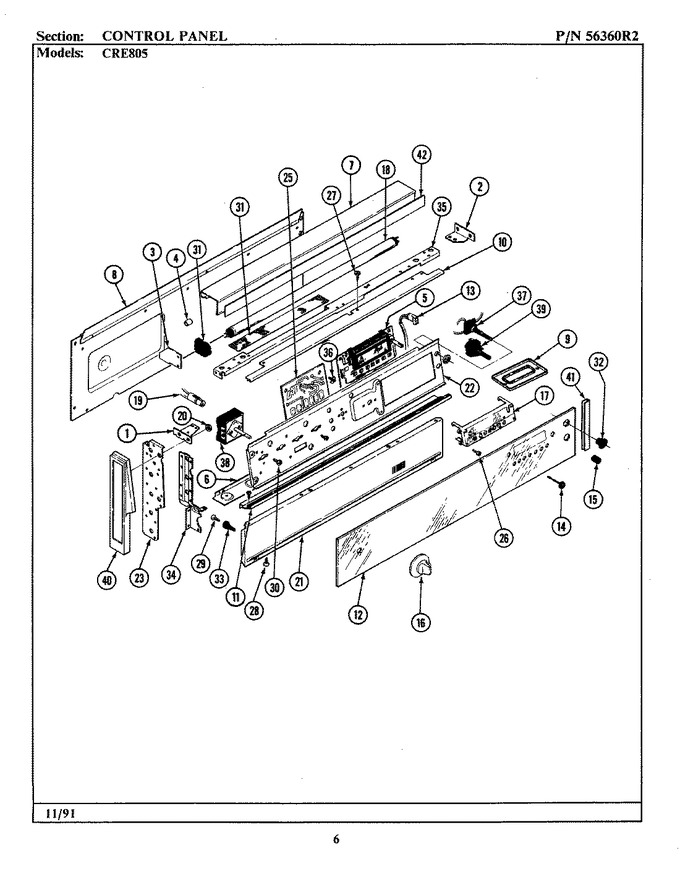

02 - Control Panel (cre805)
03 - Door
04 - Drawer
05 - Top Assembly
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3801F002-34 | Bracket (left) | 00 |
|
- | ||||
| 2 | 3801F109-34 | (right) | 00 |
|
- | ||||
| 2 | 7109P010-60 | Washer, Nylon | 00 |
|
- | ||||
| 3 | 3801F006-51 | Bracket, Lamp | 00 |
|
- | ||||
| 4 | 8007P013-60 | Bushing, Lamp Cover | 00 |
|
- | ||||
| 5 | 7601P175-60 | Clock, Electronic | 11 |
|
- | ||||
| 5 | 7601P162-60 | Clock | 09 |
|
- | ||||
| 5 | 7601P100-60 | Clock | 00 |
|
- | ||||
| 5 | 7601P154-60 | Clock | 07 |
|
- | ||||
| 6 | 4005F034-80 | Cover, Bottom | 00 |
|
- | ||||
| 7 | 7724P010-60 | Cover, Lamp | 00 |
|
- | ||||
| 8 | 4005F100-80 | Cover, Bkgd Wire | 00 |
|
- | ||||
| 8 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 00 |
|
Immediately | $ 6.85 | |||
| 8 | WP59002061 | Screw (6abx38-zn) (Replaces: 7101P077-60) | 00 |
|
$ 6.98 | ||||
| 9 | 4005F295-51 | Cover, Upper Flue Box | 00 |
|
- | ||||
| 9 | 4005F296-51 | Gasket, Cover | 00 |
|
- | ||||
| 9 | 7212P032-60 | Seal, Cover | 00 |
|
- | ||||
| 10 | 7706P194-60 | Extrusion, Glass Retainer | 00 |
|
- | ||||
| 11 | 7706P019-60 | Extrusion, Glass Support | 00 |
|
- | ||||
| 12 | 7910P050-60 | Glass Backguard | 00 |
|
- | ||||
| 13 | 5170P087-60 | Harness, Oven Sensor | 06 |
|
- | ||||
| 13 | 5170P007-60 | Harness Oven Sensor | 00 |
|
- | ||||
| 14 | 7711P171-60 | Knob, Clock (button-blk) | 00 |
|
$ 19.90 | ||||
| 15 | WP7711P492-60 | Knob, Clock (blk) (Replaces: 7711P431-60) | 09 |
|
$ 12.13 | ||||
| 15 | 7711P172-60 | Knob, Clock (blk) | 00 |
|
$ 23.55 | ||||
| 16 | W10856104 | Knob, Control (Replaces: 7737P024-60) | 00 |
|
$ 26.57 | ||||
| 17 | 7730P005-60 | Lens, Clock | 00 |
|
- | ||||
| 18 | WP95292 | Light, Control Panel (Replaces: 7407P004-60) | 00 |
|
Immediately | $ 121.45 | |||
| 19 | 7407P060-60 | Light, Indicator | 00 |
|
- | ||||
| 20 | 7103P053-60 | Nut, Push-on End Cap | 00 |
|
- | ||||
| 21 | 2620W037-81 | Panel Assy, Bkgd Lower | 00 |
|
- | ||||
| 22 | 3605F152-80 | Plate, Switch Mtg. | 00 |
|
- | ||||
| 23 | 3605F006-80 | Plate, Control Panel End (lft) | 00 |
|
- | ||||
| 23 | 3605F008-80 | Plate | 00 |
|
- | ||||
| 23 | WPW10068250 | Screw (Replaces: 7101P074-60) | 00 |
|
$ 3.66 | ||||
| 24 | WP59002061 | Screw (6abx38-zn) (Replaces: 7101P077-60) | 00 |
|
$ 6.98 | ||||
| 24 | 7408P005-60 | Receptacle, Lamp | 00 |
|
- | ||||
| 25 | 5170P006-60 | Harness, Relay | 00 |
|
- | ||||
| 25 | 7428P005-60 | Relay, Board Assy. | 00 |
|
$ 192.58 | ||||
| 26 | WP59002061 | Screw (6abx38-zn) (Replaces: 7101P077-60) | 00 |
|
$ 6.98 | ||||
| 27 | WP7101P126-60 | Screw (Replaces: 7101P058-60) | 00 |
|
Immediately | $ 6.85 | |||
| 28 | WPW10068250 | Screw (Replaces: 7101P074-60) | 00 |
|
$ 3.66 | ||||
| 29 | W11233072 | Screw (zinc) (Replaces: 7101P041-60) | 00 |
|
Immediately | $ 12.62 | |||
| 30 | 7101P280-60 | Screw W/washer (blk) | 00 |
|
- | ||||
| 31 | 3604F079-80 | Shield, Ov Lamp Recpt | 00 |
|
- | ||||
| 32 | 7214P007-60 | Sleeve, Switch (blk) | 00 |
|
- | ||||
| 33 | 8010P069-60 | Spacer, Hinge (main Top) | 00 |
|
$ 8.57 | ||||
| 34 | 3807W224-80 | Support, End (left) | 00 |
|
- | ||||
| 34 | 3807W225-80 | Support, End (right) | 00 |
|
- | ||||
| 35 | 3807F215-80 | Support, Lamp | 00 |
|
- | ||||
| 36 | 8004P020-60 | Support, Relay Board | 00 |
|
- | ||||
| 37 | 5700A284-60 | Switch Push Assy | 00 |
|
- | ||||
| 38 | 7403P267-60 | Switch, Infinite (2400w) | 16 |
|
- | ||||
| 38 | W11122008 | Switch, Inf. Control (Replaces: 7403P182-60) | 00 |
|
$ 143.28 | ||||
| 38 | 7403P266-60 | Switch, Infinite (1400w) | 16 |
|
- | ||||
| 39 | 7401P015-60 | Block, Terminal | 00 |
|
- | ||||
| 39 | 7403P104-60 | Switch, Oven Lamp | 00 |
|
- | ||||
| 39 | 7401P020-60 | Block, Main Terminal | 00 |
|
- | ||||
| 40 | 7726P029-60 | Trim, End Cap (lt) | 00 |
|
- | ||||
| 40 | 7726P030-60 | Trim, Bkgd End (rt) | 00 |
|
- | ||||
| 41 | 7720P061-60 | Trim, Glass | 00 |
|
- | ||||
| 42 | 7728P023-60 | Trim, Overlay | 00 |
|
- |
