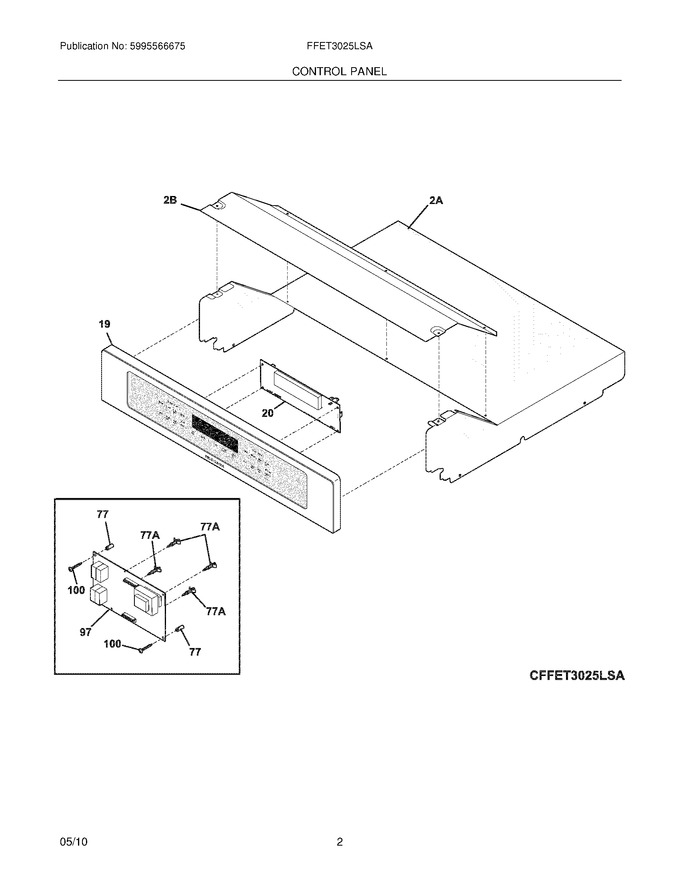

03 - Control Panel
05 - Upper Oven
07 - Lower Oven
09 - Doors
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 77 | 318293702 | Spacer,control ,(2) |
|
$ 16.22 | |||||
| 100 | 5303297477 | Screw,6-20 X 1 1/4 |
|
$ 15.17 | |||||
| 2A | 318257300 | Shield,oven Top |
|
$ 89.36 | |||||
| 2B | 318260100 | Cover,box |
|
$ 44.42 | |||||
| 77A | 316114100 | Spacer |
|
$ 60.96 | |||||
| F19 | 318271554 | Control Panel Assembly,steel/glass ,stainless/black,w/touch Pad |
|
- | |||||
| F20 | 316443854 | Control,electronic ,es610w1 ,dual Oven |
|
- | |||||
| F97 | 316443913 | Board,relay ,dual Oven |
|
$ 370.44 | |||||
| FNI | 5304517327 | Wiring Harness,timer ,to Relay Board (Replaces: 318370374) |
|
$ 83.42 | |||||
| NI | 5304436875 | Screw,8-18 X 1/2 ,black ,(3) |
|
$ 14.41 | |||||
| NI | 5303311306 | Screw,8-18 X 0.375 ,(4) |
|
- | |||||
| NI | 131202300 | Screw,8 X 5/8 ,(2) (Replaces: 3131048) |
|
Immediately | $ 13.46 | ||||
| NI | 316519700 | Screw,no.8-18 X 3/8 ,(10) (Replaces: 5304454881) |
|
$ 10.02 |
