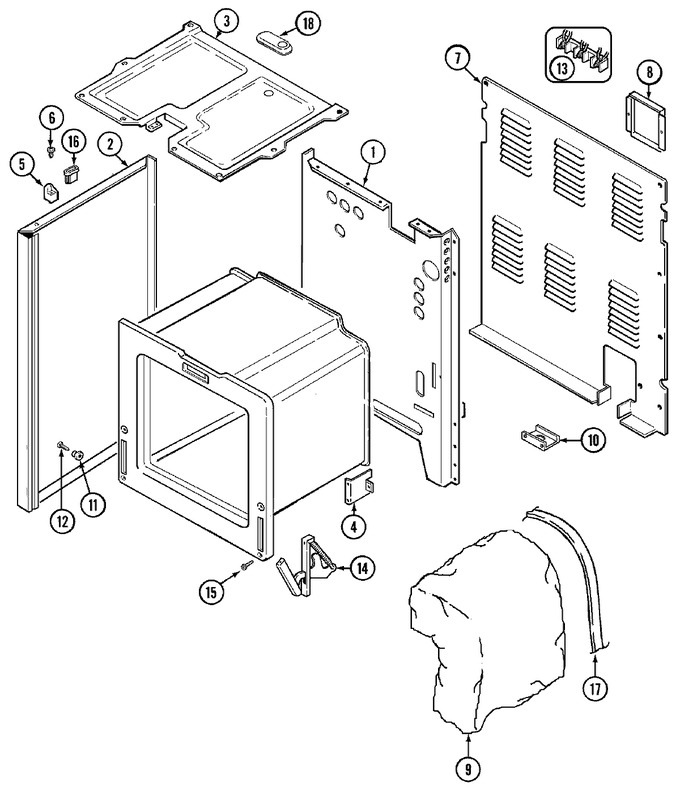

01 - Body
02 - Control Panel
03 - Door/drawer
04 - Oven/base
05 - Top Assembly
06 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 74001772 | Back, Main | 10 |
|
- | ||||
| 1 | 3604F218-51 | Shield, Wire | 10 |
|
- | ||||
| 1 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 2 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 2 | 74001884 | Panel, Side (wht) | 10 |
|
- | ||||
| 2 | 8270P078-60 | Tape, Foil (29 1/2``) | 10 |
|
- | ||||
| 2 | 7003P067-60 | Insulator, Damper Sound | 10 |
|
- | ||||
| 3 | 4011F239-19 | Box, Burner | 10 |
|
- | ||||
| 3 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 4 | 3807F400-51 | Support,oven Rear | 10 |
|
- | ||||
| 4 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 5 | 8010P087-60 | Spacer, Main Top (lt) | 10 |
|
- | ||||
| 5 | 8010P088-60 | Spacer, Main Top (rt) | 10 |
|
- | ||||
| 6 | 7101P313-60 | Screw (8abx3/8-zn) | 10 |
|
- | ||||
| 7 | 4005F455-51 | Cover, Wire | 10 |
|
- | ||||
| 7 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 8 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 8 | 4005F427-51 | Cover, Access | 10 |
|
- | ||||
| 9 | 74001800 | Insulation, Back | 10 |
|
- | ||||
| 9 | 4804F036-60 | Insulation, Wrap | 10 |
|
- | ||||
| 10 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 10 | 3605F174-51 | Plate, Conduit Tubing | 10 |
|
- | ||||
| 11 | W10857933 | Spacer, Side Panel (Replaces: 8004P024-60) | 10 |
|
$ 7.07 | ||||
| 12 | WPW10348409 | Screw (8abx13/16-zn) (Replaces: 74001449) | 10 |
|
Immediately | $ 6.98 | |||
| 13 | WPW10245259 | Block, Terminal (Replaces: 7401P039-60) | 10 |
|
Immediately | $ 31.65 | |||
| 14 | W10876639 | Hinge, Door (Replaces: 74003239) | 19 |
|
$ 129.21 | ||||
| 14 | 7106P055-60 | Hinge | 10 |
|
$ 52.22 | ||||
| 15 | WP4159193 | Screw (10-24x5/16-ni) (Replaces: 7101P282-60) | 10 |
|
$ 4.29 | ||||
| 16 | 74001256 | Bushing, Prop Support | 10 |
|
- | ||||
| 17 | 4820F001-59 | Strap, Retainer | 10 |
|
- | ||||
| 18 | WPW10348409 | Screw (8abx13/16-zn) (Replaces: 74001449) | 10 |
|
Immediately | $ 6.98 | |||
| 18 | 4005F432-45 | Cover, Vent | 10 |
|
- |
