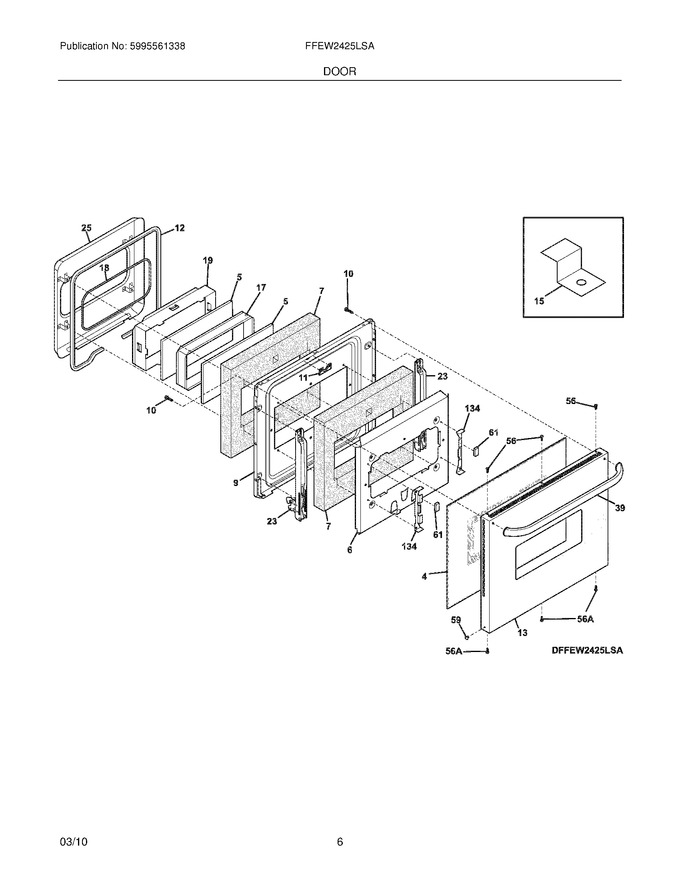

07 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
4	318051560		Glass,oven Door ,black ,outer		Appelez-nous	-
5	5303324250		Glass,door ,13 1/2 X 6 1/2				$ 184.54
6	318073600		Shield-air Wash		Appelez-nous	-
7	318285037		Insulation,oven Door		Appelez-nous	-
9	318038600		Liner,oven Door		Appelez-nous	-
10	5303310510		Screw,10-24 X 0.625				$ 14.18
11	318065102		Latch-door				$ 58.81
12	318178801		Seal,oven Door ,upper Oven		Appelez-nous	-
13	318280016		Panel,exterior Door ,stainless		Appelez-nous	-
15	318091102		Bracket-glass,(3)		Appelez-nous	-
17	318139100		Spacer-glass, Upper Oven		Appelez-nous	-
18	318293510		Gasket,door Glass Seal				$ 28.35
19	318139201		Collar-glass Mtg		Appelez-nous	-
23	318567110		Hinge,oven Door		Appelez-nous	-
25	318048319		Liner,oven Door		Appelez-nous	-
39	318362822		Handle Assembly,door ,black ,w/spacer				$ 104.05
56	5303323277		Screw (8-18x13/32)				$ 8.66
59	3202113		Plug,button		Appelez-nous	-
61	5303300414		Spacer, Cork & Rubber				$ 13.18
134	318122101		Bracket-glass		Appelez-nous	-
56A	5303300265		Screw,8-18 X 1/2 ,(4)				$ 15.17
NI	134178901		Screw,8-18 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	5303325981		Screw,10-16 X 1 1/2		Appelez-nous	-
NI	08002868		Screw,10-24 X 0.500 ,probe,thrm Brkt ,shield,drwr,box				$ 14.18
NI	5304415832		Screw,8-18 X 0.406		Appelez-nous	-
NI	5304461333		Screw,10-32 X 17/32			Immediately	$ 13.46
NI	5304445498		Plug,button		Appelez-nous	-
NI	5303316982		Foam Seal,(2)		Appelez-nous	-
NI	5303304015		Washer, Padded		Appelez-nous	-
