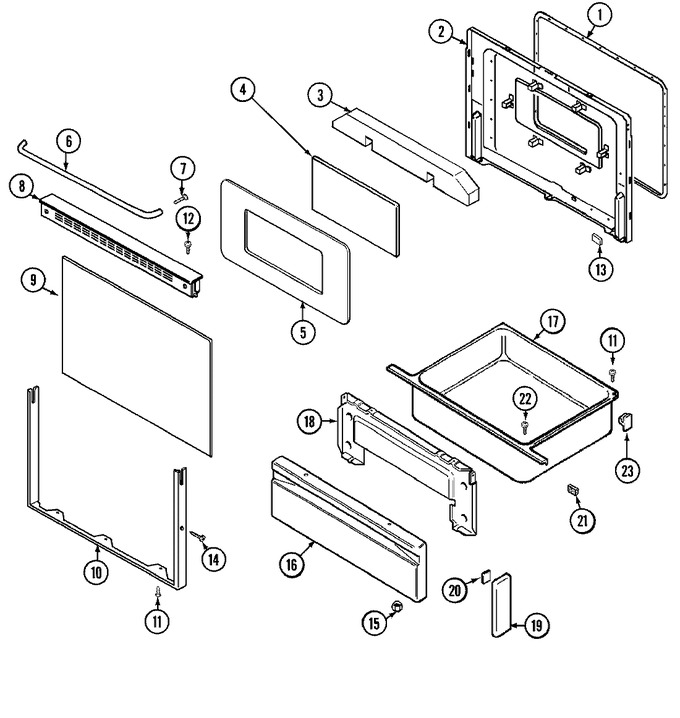

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP7212P043-60 | Seal, Door (Replaces: 7212P043-60) | 10 |
|
Immediately | $ 56.83 | |||
| 2 | WP74001574 | Nut, Snap (round-blk) (Replaces: 74001574) | 10 |
|
Immediately | $ 9.91 | |||
| 2 | 74003248 | Lining, Door | 13 |
|
- | ||||
| 2 | 74002460 | Lining, Door | 10 |
|
- | ||||
| 2 | WP7103P114-60 | Nut, Snap (round-wht) (Replaces: 7103P039-60) | 10 |
|
$ 9.89 | ||||
| 3 | 74002458 | Insulation, Door | 10 |
|
- | ||||
| 4 | 74002459 | Glass, Door (inner) | 10 |
|
- | ||||
| 5 | 74002461 | Baffle, Door | 10 |
|
- | ||||
| 5 | 7101P209-60 | Screw | 10 |
|
- | ||||
| 6 | 7701P149-60 | Handle, Oven Door (blk) | 10 |
|
- | ||||
| 7 | 7101P326-60 | Screw | 10 |
|
- | ||||
| 7 | 74001521 | Washer (1``) | 10 |
|
$ 5.27 | ||||
| 8 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 8 | 7706P305-60 | Trim, Door (upper-blk) | 10 |
|
- | ||||
| 9 | 7902P361-60 | Glass, Door (outer/blk) | 10 |
|
- | ||||
| 10 | 7706P309-60 | Frame, Door (blk) | 10 |
|
- | ||||
| 11 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 12 | WP98008545 | Screw (1/2``) (Replaces: 7101P040-60) | 10 |
|
$ 15.94 | ||||
| 13 | 8010P085-60 | Spacer, Rubber | 10 |
|
- | ||||
| 14 | WP98008545 | Screw (1/2``) (Replaces: 7101P040-60) | 10 |
|
$ 15.94 | ||||
| 15 | WPW10131078 | Nut, Lock (Replaces: 7103P139-60) | 10 |
|
$ 4.00 | ||||
| 16 | 2416F050-71 | Panel, Drawer (wht) | 10 |
|
- | ||||
| 17 | 3405F019-80 | Drawer, Storage | 10 |
|
- | ||||
| 17 | 74003618 | Drawer, Storage | 14 |
|
- | ||||
| 18 | 2404F043-80 | Lining | 10 |
|
- | ||||
| 19 | 7744P093-60 | End Cap (wht) | 10 |
|
- | ||||
| 20 | 8270P098-60 | Tape | 10 |
|
$ 5.02 | ||||
| 21 | WP854334 | Seal, Rubber (Replaces: 7208P011-60) | 10 |
|
$ 11.95 | ||||
| 22 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 23 | 8004P026-60 | Support, Drawer (rear) | 10 |
|
$ 9.29 | ||||
| 23 | WP488130 | Nut (Replaces: 7103P082-60) | 14 |
|
$ 6.27 | ||||
| 23 | 74003566 | Roller, Drawer | 14 |
|
- |
