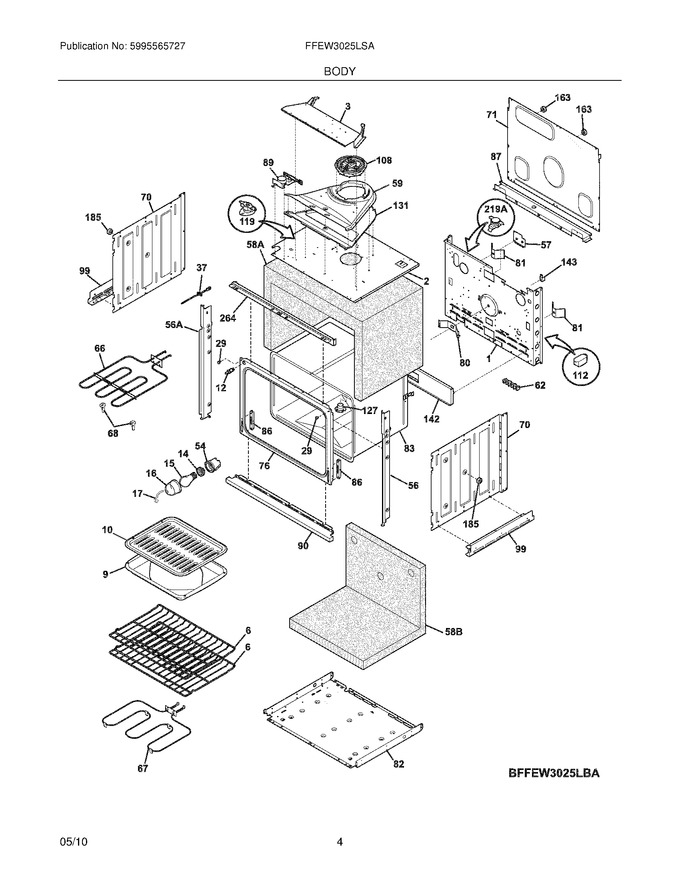

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318259220		Back,main				$ 88.31
2	318570500		Panel,insualtion ,top				$ 86.89
3	318577700		Panel,mounting		Appelez-nous	-
6	318922306		Rack,oven				$ 146.79
9	316081900		Pan,broileroptional Access0ry				$ 65.89
10	316082000		Insert,broiler Panoptional Access0ry				$ 68.85
12	316445501		Switch,oven Light ,door Frame				$ 90.01
14	316116400		Receptacle,oven Light   (Replaces: 318224000)			Immediately	$ 56.10
15	40A15		Bulb/lamp,light   (Replaces: 5303013071)			Immediately	$ 1.98
16	5304524341		Lens,oven Light ,glass   (Replaces: 318406100)			Immediately	$ 14.18
17	5304400195		Retainer,light Cover		Appelez-nous	-
29	316517600		Spacer,oven Door				$ 12.05
54	318222400		Housing,oven Light				$ 58.22
56	318903704		Trim,side ,black ,rh		Appelez-nous	-
57	318402800		Plate,cover				$ 9.23
59	318570600		Duct,cooling Fan		Appelez-nous	-
62	5304409888		Terminal Block   (Replaces: 316056000)			Immediately	$ 26.69
68	5304403015		Support,hanger ,broil Element				$ 35.04
70	318259105		Shield,insulation ,sides ,(2)				$ 91.51
71	318260007		Panel,rear Box				$ 102.90
76	318056292		Front,oven				$ 131.67
80	5303320846		Plate,oven Mtg				$ 51.50
81	318192400		Spring,oven				$ 312.53
82	318258765		Shield,insulation ,lower				$ 85.68
83	318261456		Liner,oven Assy				$ 196.19
86	318561100		Receptacle,hinge ,(2)				$ 21.23
87	318260622		Bracket,cable Mtg.		Appelez-nous	-
90	318259825		Trim,base ,stainless		Appelez-nous	-
99	318256201		Bracket,side ,bottom ,(2)				$ 56.70
127	318317104		Adapter Assembly,vent Tube ,w/converter		Appelez-nous	-
131	318574800		Bottom,cooling Duct		Appelez-nous	-
142	318123910		Deflector		Appelez-nous	-
143	318172904		Support,wire		Appelez-nous	-
163	318531703		Spacer		Appelez-nous	-
185	318531800		Spacer,oven Shield ,(2)				$ 12.76
264	318257706		Trim,oven ,black ,front		Appelez-nous	-
56A	318903705		Trim,side ,black ,lh		Appelez-nous	-
58A	318386113		Insulation,oven Wrapper		Appelez-nous	-
58B	318133791		Insulation,oven Back ,back/bottom		Appelez-nous	-
F108	318575600		Motor,cooling Fan			Immediately	$ 272.25
F112	318112703		Relay				$ 66.99
F119	318578501		Thermostat,cooling Fan ,105 Deg.		Appelez-nous	-
F219	318003624		Thermostat,safety ,1.375`` Mtg ,105/120   (Replaces: 318003613)			Immediately	$ 23.39
F37	316217002		Probe,oven Temp			Immediately	$ 61.23
F66	318255801		Element,broil ,3400w				$ 99.39
F67	318254918		Element,bake ,2750w				$ 189.95
F89	318261230		Motor,latch Assy   (Replaces: 318261222)				$ 129.80
FNI	5304506983		Box & Wires Assy   (Replaces: 318394441)				$ 133.47
FNI	318572719		Harness,wiring ,latch				$ 53.50
FNI	318572718		Harness,wiring ,main		Appelez-nous	-
NI	5303324184		Screw,8-18 X 5/16 ,black			Immediately	$ 14.18
NI	5303323136		Screw-ground		Appelez-nous	-
NI	5304461333		Screw,10-32 X 17/32			Immediately	$ 13.46
NI	316519700		Screw,no.8-18 X 3/8 ,(10)   (Replaces: 5304454881)				$ 10.02
NI	5304415832		Screw,8-18 X 0.406		Appelez-nous	-
NI	318368501		Seal,housing ,flat Washer		Appelez-nous	-
NI	318165800		Spacer				$ 17.72
NI	318268099		Insulation,oven Light		Appelez-nous	-
NI	316205500		Nut-10-32   (Replaces: 5303323144)				$ 11.34
NI	5304455945		Spacer,(4)		Appelez-nous	-
NI	5303323139		Screw,10-24 X 0.906				$ 13.46
NI	5303308450		Screw,8 X 0.375 ,(10)		Appelez-nous	-
NI	5303323129		Screw,8 X 0.750		Appelez-nous	-
NI	318579000		Bracket,wire		Appelez-nous	-
NI	5303325981		Screw,10-16 X 1 1/2		Appelez-nous	-
NI	5304400192		Retainer,wiring		Appelez-nous	-
NI	134178901		Screw,8-18 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	5303323277		Screw (8-18x13/32)				$ 8.66
NI	5304417153		Screw,shoulder ,8-18 X 1/2 ,(4)		Appelez-nous	-
