SELECT A DIAGRAM

01 - Cover

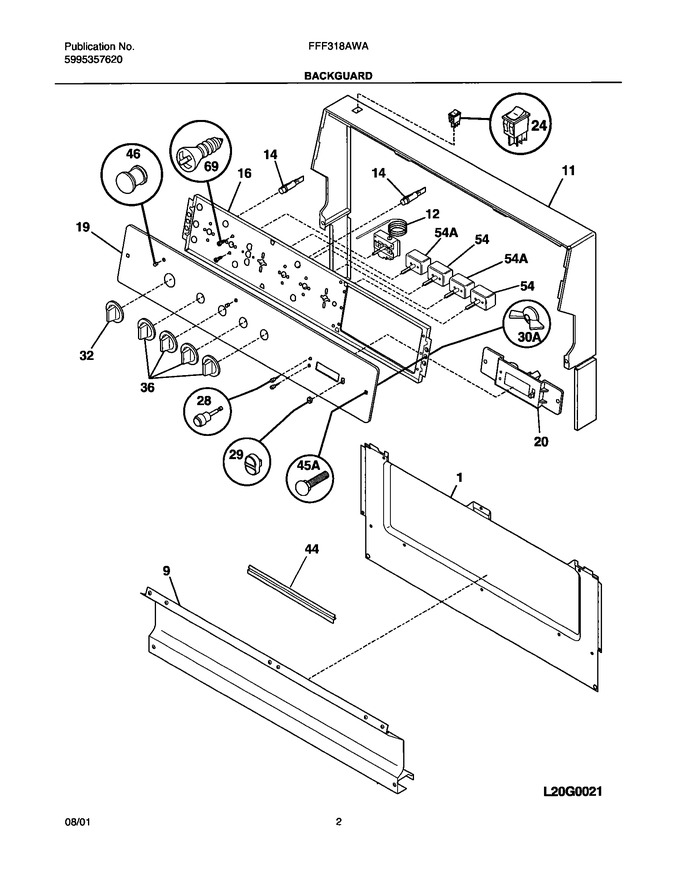

03 - Backguard


05 - Body


07 - Top/drawer


09 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303289640		Shield-backguard,rear Wall				$ 144.64
9	316133501		Trim-splasher,white ,lower		Appelez-nous	-
11	316083715		Trim,wrapper ,black		Appelez-nous	-
16	316042602		Plate, Instrument Mtg		Appelez-nous	-
19	316034169		Panel-back Guard,black		Appelez-nous	-
28	5303272306		Push Button,clock Set ,black ,(2)		Appelez-nous	-
29	5303272305		Button,clock/timer ,black				$ 38.80
32	316123307		Knob-thermostat,black				$ 40.79
36	316123303		Knob,infinite Switch ,black		Appelez-nous	-
44	3131468		Bracket, Backguard		Appelez-nous	-
46	316065801		Lens,indicator Light ,red		Appelez-nous	-
69	5303288565		Screw,truss Sqdr `8-32 X 3/16 ,switch Mtg				$ 3.12
30A	316064300		Nut,nylon		Appelez-nous	-
45A	316056902		Bolt-fastener, Nylon		Appelez-nous	-
F12	316032408		Thermostat,oven				$ 355.67
F14	3201726		Light/lamp, Indicator, Blue, 250 V		Appelez-nous	-
F20	316096002		Clock/timer		Appelez-nous	-
F24	5304527841		Switch,rocker ,black ,oven Light   (Replaces: 316246001)			Immediately	$ 11.38
F54	5303935086		Switch,element ,6``   (Replaces: 5303285142)			Immediately	$ 51.95
F54A	5303285143		Switch,element ,8``		Appelez-nous	-
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316021109		Screw`8-18 X 0.5 ,chrome			Immediately	$ 27.50
NI	316519700		Screw,cup Pt ,8-18 X 0.375 ,chrome   (Replaces: 316021108)				$ 10.02
