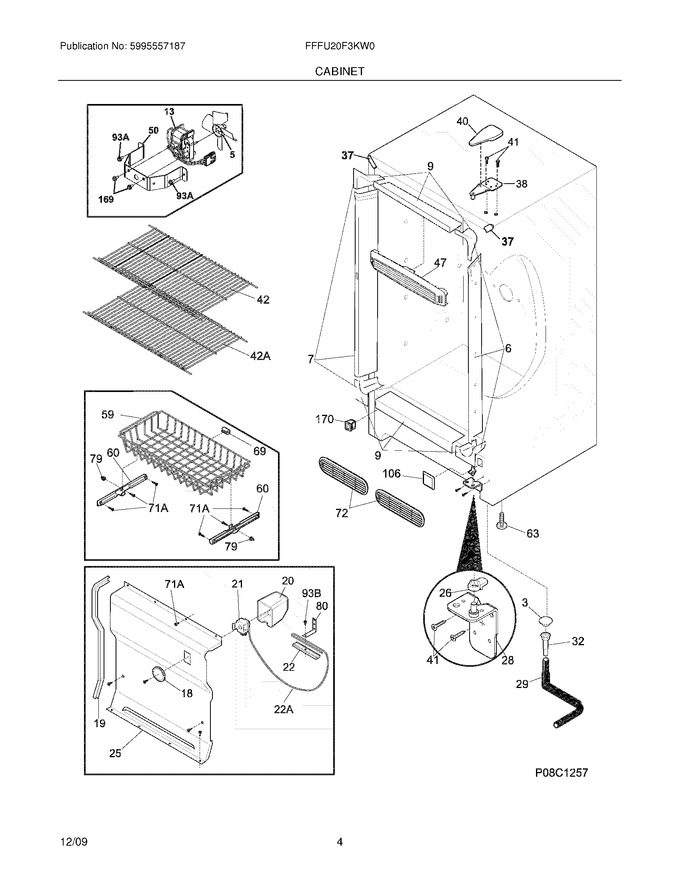

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	216503100		Screen-drain				$ 62.17
6	297200900		Breaker Kit W/corners			Immediately	$ 70.85
7	297201100		Breaker Kit W/corners,lock Catch				$ 89.57
9	297200100		Breaker Kit W/corners,32`` ,top And Bottom				$ 59.28
18	216707200		Knob,temp Control				$ 44.10
19	216204901		Gasket-cover Evap				$ 9.08
20	216967201		Cover,temp Control   (Replaces: 216967200)				$ 15.18
21	5304513033		Control- Temperature   (Replaces: 216715200)			Immediately	$ 83.14
22	216823500		Clamp, Cap Tube, Cold Control				$ 15.27
25	297099050		Cover-evaporator		Appelez-nous	-
26	216503300		Ramp,door Closer				$ 8.82
28	297283900		Hinge-bottom,stepped Pin			Immediately	$ 54.23
29	5304512272		Hose-drain   (Replaces: 216313501)			Immediately	$ 15.90
32	5304511843		Drain   (Replaces: 5308005500)				$ 13.74
37	297273904		Trim-cabinet Corner,white ,(2)   (Replaces: 297273900)				$ 7.59
38	297283803		Hinge-upper   (Replaces: 297283800)			Immediately	$ 19.52
40	297164400		Cover-hinge				$ 12.65
41	240578902		Screw,hex Head ,1/4-20 X 5/8			Immediately	$ 14.18
42	297119601		Shelf,14.50x27.88		Appelez-nous	-
47	297192903		Baffle,air   (Replaces: 297192900)			Immediately	$ 25.31
50	216394050		Bracket,fan Motor Mount				$ 22.75
59	297118900		Basket,(2)		Appelez-nous	-
60	297013500		Slide,shelf				$ 38.98
63	216396900		Screw, Leveling Foot, Plastic, Adjustable			Immediately	$ 38.39
69	5305878546		Bumper, Basket				$ 7.23
72	216952700		Grille/guard,(2)				$ 26.80
79	301036		Nut-insert   (Replaces: 3017666)				$ 15.90
80	06594601		Bracket, Control				$ 17.64
93	216858001		Screw,ph Truss Head ,8-18ab X 0.500   (Replaces: 5304460605)			Immediately	$ 10.85
106	216926301		Plug,square		Appelez-nous	-
169	216912401		Screw,hex Washer Head ,8-32 X 0.500 ,bracket Fan Mtr,(2)				$ 12.76
170	297280400		Valve,breather				$ 10.13
22A	5303916855		Tube,sensor Sleeve ,plastic ,clear				$ 60.96
42A	297119701		Shelf,wire ,16.69x27.88 ,white ,(3)		Appelez-nous	-
71A	297146800		Screw,8-18ab X 0.470		Appelez-nous	-
93A	241500305		Screw,no.8 ,18x.63 ,self Pierce   (Replaces: 297174300)				$ 3.03
93B	5304460604		Screw,type A ,10-24 X 3/8		Appelez-nous	-
F13	297309000		Motor,fan ,115 V   (Replaces: 297250000)			Immediately	$ 55.32
F5	5308000010		Fan Blade   (Replaces: 216325600)			Immediately	$ 49.03
NI	125963-48		Insulation,24`` ,drain Tube   (Replaces: 297001704)			Immediately	$ 59.16
NI	297164650		Bracket,lh Leg Levelor				$ 18.43
NI	297164651		Bracket,rh Leg Levelor				$ 17.51
NI	216327800		Clip,wire		Appelez-nous	-
NI	216795514		Energy Guide		Appelez-nous	-
NI	5303321319		Paint, Touch-up, White   (Replaces: 5303305324)			Immediately	$ 13.46
NI	216502400		Grommet-shelf Mtg				$ 16.63
