SELECT A DIAGRAM

01 - Cover

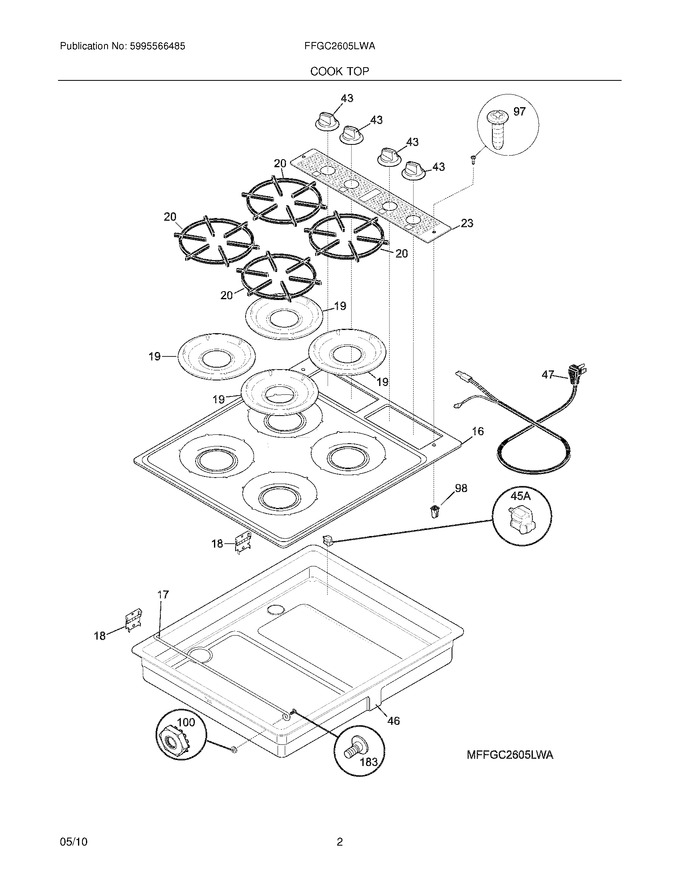

03 - Cook Top


05 - Burner


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
16	318159105		Panel,main Top ,white		Appelez-nous	-
17	3016817		Rod,maintop Support		Appelez-nous	-
18	318074310		Hinge-main Top, (2)				$ 51.98
19	318067300		Pan,burner ,(4)		Appelez-nous	-
20	316040807		Grate,black ,(4)		Appelez-nous	-
23	318075404		Panel Assembly,control ,chrome ,w/labels-badge		Appelez-nous	-
43	316544014		Knob,control ,black		Appelez-nous	-
46	318077303		Burner Box		Appelez-nous	-
47	318144006		Cord,service		Appelez-nous	-
97	5303300265		Screw,8-18 X 1/2 ,(4)				$ 15.17
98	5303326255		Screw Grommet		Appelez-nous	-
100	5303325982		Nut,keps ,10-32		Appelez-nous	-
183	5304410665		Screw,10-32 X 5/8 ,(8)		Appelez-nous	-
45A	5304513507		Strain Relief   (Replaces: 3201437)				$ 9.10
NI	5303324191		Washer,flat		Appelez-nous	-
NI	5303311532		Screw,6-32 X 1/4`` ,back		Appelez-nous	-
NI	5304453707		Screw, 8-32 X 3/8   (Replaces: 5303311333)			Immediately	$ 15.92

    View Diagram in Separate Window       Print Part List
