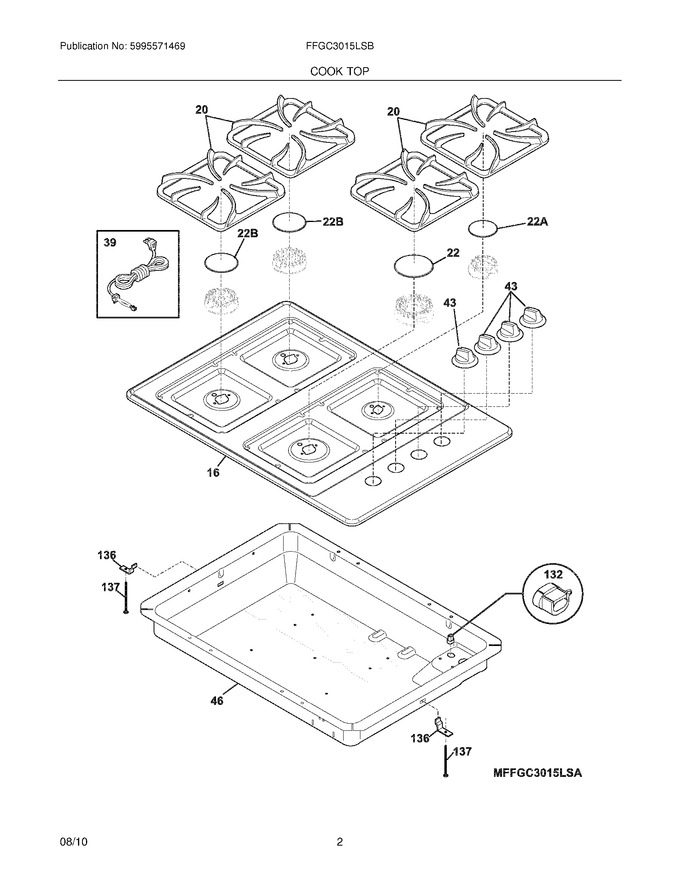

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
16	318159165		Panel,main Top ,stainless ,w/graphics		Appelez-nous	-
20	318227011		Grate,burner ,black ,(4)		Appelez-nous	-
22	316261904		Cap,12k Burner ,black				$ 46.36
39	318144006		Cord,service		Appelez-nous	-
43	316544029		Knob,control ,black		Appelez-nous	-
46	318278904		Box,burner		Appelez-nous	-
132	5304513507		Strain Relief   (Replaces: 3201437)				$ 9.10
136	318264301		Support,box ,(2)				$ 42.95
137	5303285443		Screw,lock Bracket ,10-24 X 2.00		Appelez-nous	-
22A	5304508441		Cap,5k Burner ,black   (Replaces: 316261704)			Immediately	$ 35.04
22B	5304508442		Cap,9.5k Burner ,black   (Replaces: 316261804)			Immediately	$ 36.55
NI	318163602		Cleaner,stainless Steel				$ 26.51
NI	5303323140		Screw,ground ,10-32 X 0.375		Appelez-nous	-
