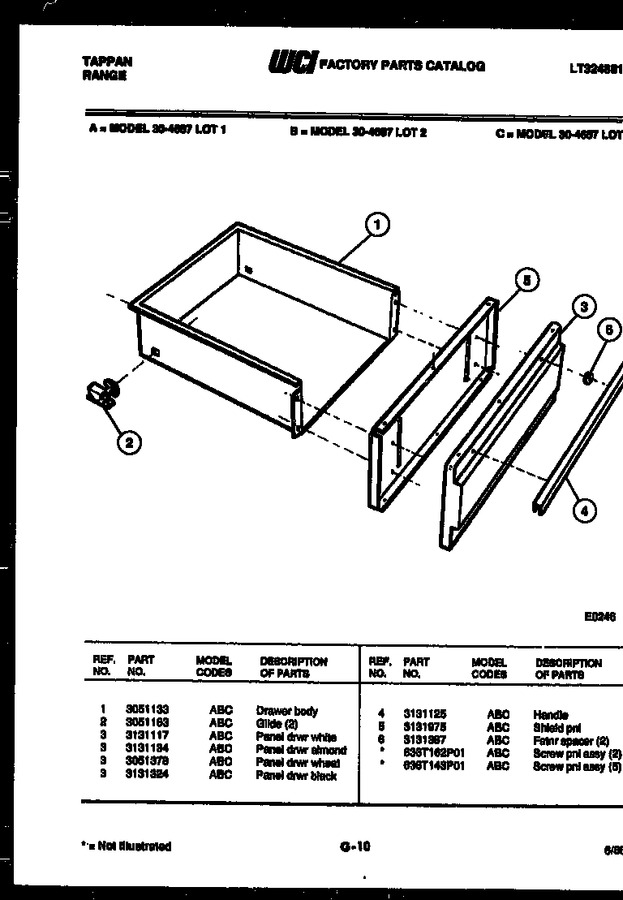

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3051133 | Drawer Body |
|
- | |||||
| 2 | 3051163 | Glide (2) |
|
Immediately | $ 19.41 | ||||
| 3 | 3131324 | Panel, Drwr., Black |
|
- | |||||
| 3 | 3131117 | Panel Drwr White |
|
- | |||||
| 4 | 3131125 | Handle |
|
- | |||||
| 5 | 3131975 | Shield-pnl |
|
- | |||||
| 6 | 3131387 | Fstnr, Spacer (2) |
|
- | |||||
| *87647 | 636T162P01 | Screw Pnl Assy (2) |
|
- | |||||
| *87647 | 636T143P01 | Screw |
|
- |
