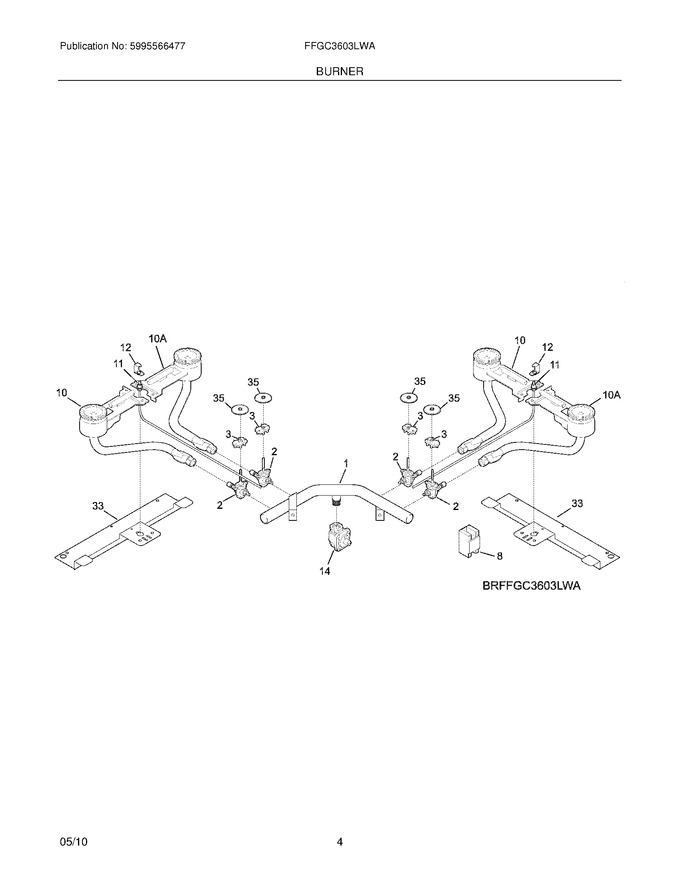

05 - Burner


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318177102		Manifold Pipe		Appelez-nous	-
12	3016993		Retainer-ignitor		Appelez-nous	-
33	5303311317		Bracket-burner Mtg, (2)		Appelez-nous	-
35	318146301		Bushing				$ 34.34
F10	318176412		Burner,top ,lf & Rr		Appelez-nous	-
F10A	318176413		Burner,top ,rf & Lr		Appelez-nous	-
F11	318148503		Ignitor-top Burner		Appelez-nous	-
F14	318122707		Regulator,pressure   (Replaces: 318122712)				$ 121.19
F2	318087010		Valve-top Burner		Appelez-nous	-
F3	318232603		Wiring Harness,w/igntr Switch		Appelez-nous	-
F8	5304518635		Module,spark   (Replaces: 316135700)				$ 87.21
NI	5303311532		Screw,6-32 X 1/4`` ,back		Appelez-nous	-
NI	5303323141		Screw,valve Mtg ,1/4-20 X 5/16		Appelez-nous	-
NI	318024201		Bracket,spark Module				$ 9.08
NI	5304453707		Screw, 8-32 X 3/8   (Replaces: 5303311333)			Immediately	$ 15.92
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
NI	5303311306		Screw,8-18 X 0.375 ,(4)		Appelez-nous	-
