View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Body
02 - Control Panel

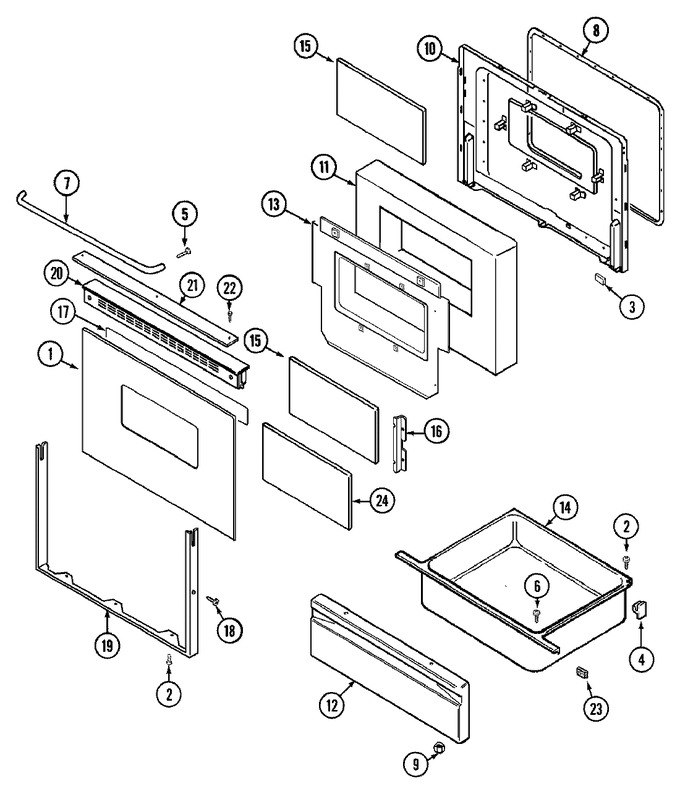

03 - Door/drawer
04 - Door/drawer (cde Series 12)
05 - Oven/base
06 - Top Assembly
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7902P360-60 | Glass, Door (wht) | 12 |
|
- | ||||
| 2 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 12 |
|
Immediately | $ 12.62 | |||
| 3 | 8010P085-60 | Spacer, Rubber | 12 |
|
- | ||||
| 4 | 8004P026-60 | Support, Drawer (rear) | 12 |
|
$ 9.29 | ||||
| 5 | 7101P326-60 | Screw | 12 |
|
- | ||||
| 6 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 12 |
|
Immediately | $ 12.62 | |||
| 7 | 7701P150-60 | Handle, Oven Door (wht) | 12 |
|
- | ||||
| 8 | WPW10162384 | Gasket, Door (Replaces: 7201P046-60) | 12 |
|
Immediately | $ 77.61 | |||
| 9 | WPW10131078 | Nut, Lock (Replaces: 7103P139-60) | 12 |
|
$ 4.00 | ||||
| 10 | WP74001574 | Nut, Snap (round-blk) (Replaces: 74001574) | 12 |
|
Immediately | $ 9.91 | |||
| 10 | 2402W209-19 | Lining, Door | 12 |
|
- | ||||
| 10 | WP7103P114-60 | Nut, Snap (round-wht) (Replaces: 7103P039-60) | 12 |
|
$ 9.89 | ||||
| 10 | 7103P136-60 | Nut, Snap | 12 |
|
- | ||||
| 11 | 74001842 | Insulation, Door | 12 |
|
- | ||||
| 12 | 2416F039-62 | Panel, Drawer (wht) | 12 |
|
- | ||||
| 13 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 12 |
|
Immediately | $ 12.62 | |||
| 13 | 74001843 | Baffle, Door | 12 |
|
- | ||||
| 14 | 3405F019-80 | Drawer, Storage | 12 |
|
- | ||||
| 15 | 74001841 | Glass, Inner | 12 |
|
- | ||||
| 16 | 74001844 | Retainer, Glass | 12 |
|
- | ||||
| 16 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 12 |
|
Immediately | $ 12.62 | |||
| 17 | 8270P090-60 | Tape, Foil (3`` Wide) | 12 |
|
- | ||||
| 18 | WP98008544 | Screw (1/2``-wht) (Replaces: 7101P373-60) | 12 |
|
$ 11.89 | ||||
| 19 | 7706P310-60 | Frame, Door (wht) | 12 |
|
- | ||||
| 20 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 12 |
|
Immediately | $ 12.62 | |||
| 20 | 7706P306-60 | Trim, Door (upper-wht) | 12 |
|
- | ||||
| 21 | 7728P094-60 | Insert, Door Trim (wht) | 12 |
|
$ 82.40 | ||||
| 22 | WP98008544 | Screw (1/2``-wht) (Replaces: 7101P373-60) | 12 |
|
$ 11.89 | ||||
| 22 | 74001278 | Screw (wht) | 12 |
|
$ 5.83 | ||||
| 23 | WP854334 | Seal, Rubber (Replaces: 7208P011-60) | 12 |
|
$ 11.95 | ||||
| 24 | 74002002 | Glass, Inner | 12 |
|
$ 62.17 |
