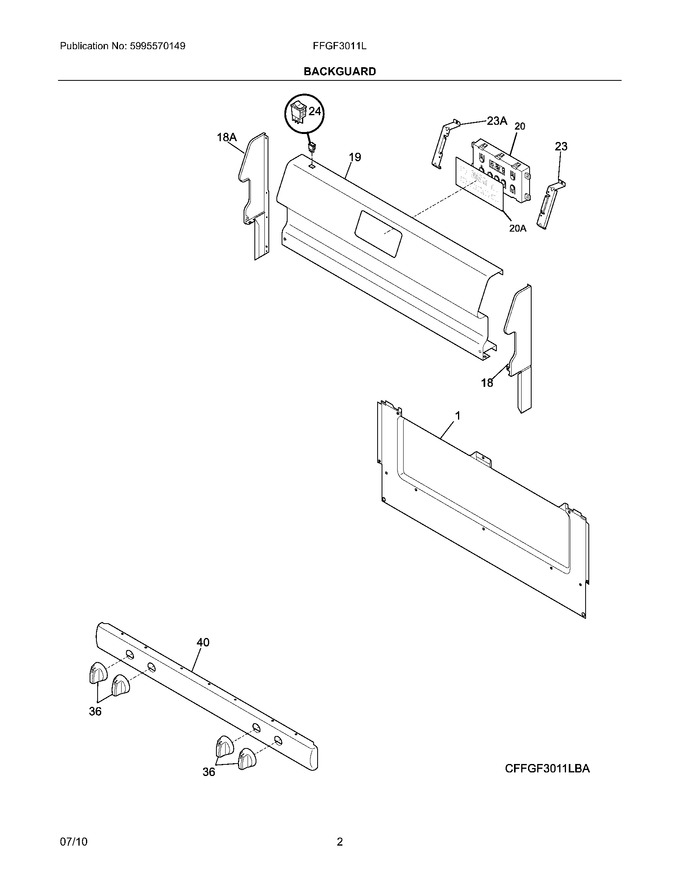

1	5303289640		Shield-backguard,rear Wall				$ 144.64
18	316263402		End Cap,black ,rh		Appelez-nous	-
19	316263372		Panel,backguard ,black		Appelez-nous	-
23	316263500		Bracket,clock Mtg ,rh		Appelez-nous	-
36	316543910		Knob,top Valve ,black ,(4)		Appelez-nous	-
40	316458049		Panel,manifold ,black		Appelez-nous	-
18A	316263403		End Cap,black ,lh		Appelez-nous	-
20A	316220729		Overlay,clock ,black   (Replaces: 316220725)			Immediately	$ 26.93
23A	316263501		Bracket,clock Mtg ,lh		Appelez-nous	-
F20	5304518661		Clock/timer,electronic ,es100   (Replaces: 316455410)			Immediately	$ 148.07
F24	5304527841		Switch,rocker ,black ,oven Light   (Replaces: 316448700)			Immediately	$ 11.38
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316519700		Screw,cup Pt ,8-18 X 0.375 ,chrome   (Replaces: 316021108)				$ 10.02
