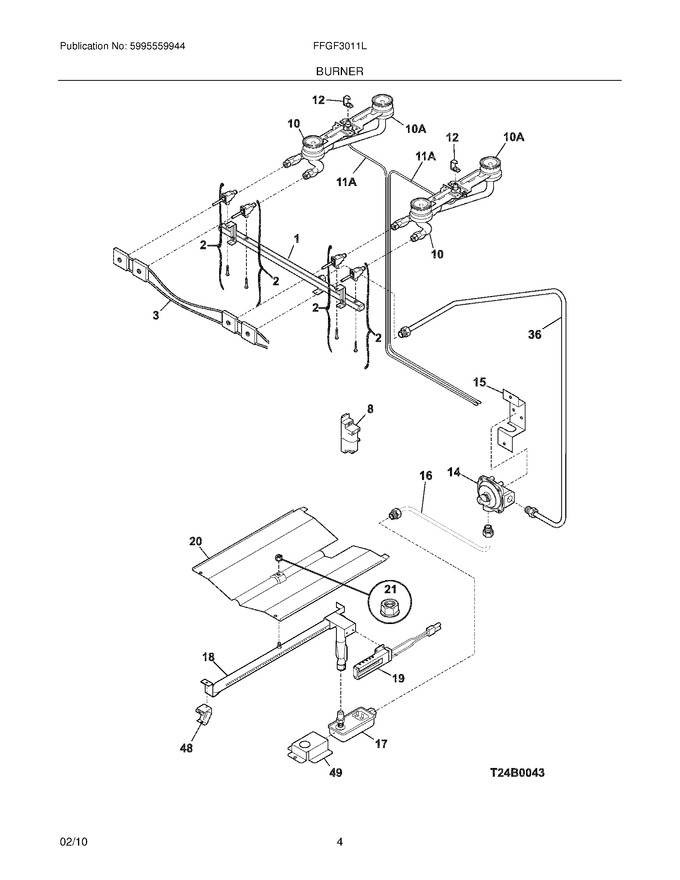

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
12	3016993		Retainer-ignitor		Appelez-nous	-
15	316091600		Bracket-regulator				$ 73.56
20	316496001		Baffle,oven Burner				$ 78.33
21	154079601		Nut,hex Head Sems   (Replaces: 5303013272)				$ 0.41
48	3018603		Bracket,support ,oven Burner		Appelez-nous	-
49	316416300		Bracket,safety Valve		Appelez-nous	-
F1	316547300		Pipe,manifold		Appelez-nous	-
F10	5304506427		Burner,top ,front ,venturi Ring   (Replaces: 316103800)				$ 101.63
F10A	5304506426		Burner,top ,rear ,venturi Ring   (Replaces: 316103801)				$ 100.05
F11A	316081705		Ignitor,top Burner ,50``				$ 94.27
F14	5304521339		Regulator,pressure   (Replaces: 316416700)			Immediately	$ 105.42
F16	316065006		Tube-valve To Rgltr,3/8   (Replaces: 316436500)				$ 122.09
F17	3203459		Valve-safety				$ 303.64
F18	316114300		Burner,oven				$ 169.88
F19	5304509706		Ignitor,oven Kit ,w/nut & Instr   (Replaces: 316489402)			Immediately	$ 189.59
F2	5304458372		Valve,top Burner ,w/mtg Screw				$ 62.37
F3	316219015		Wiring Harness,w/igntr Switch		Appelez-nous	-
F36	316547200		Tubing-aluminum,3/8 ,alum		Appelez-nous	-
F8	5304518635		Module,spark   (Replaces: 316135700)				$ 87.21
NI	5303271648		Screw,wafer Hd Sq Dr ,8-18ab X 0.5			Immediately	$ 13.46
NI	316566900		Sleeve,insulator		Appelez-nous	-
NI	316215600		Screw,valve Mtg. ,1/4 - 20			Immediately	$ 14.18
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 27.50
NI	GRLP5		Lp Conversion Kit   (Replaces: 316243723)			Immediately	$ 49.53
NI	316001017		Screw,ground Wire   (Replaces: 316001003)				$ 3.03
NI	316021104		Screw`hex ,8-18 X 3/8 `nick `(3) `regulator Brkt				$ 7.79
