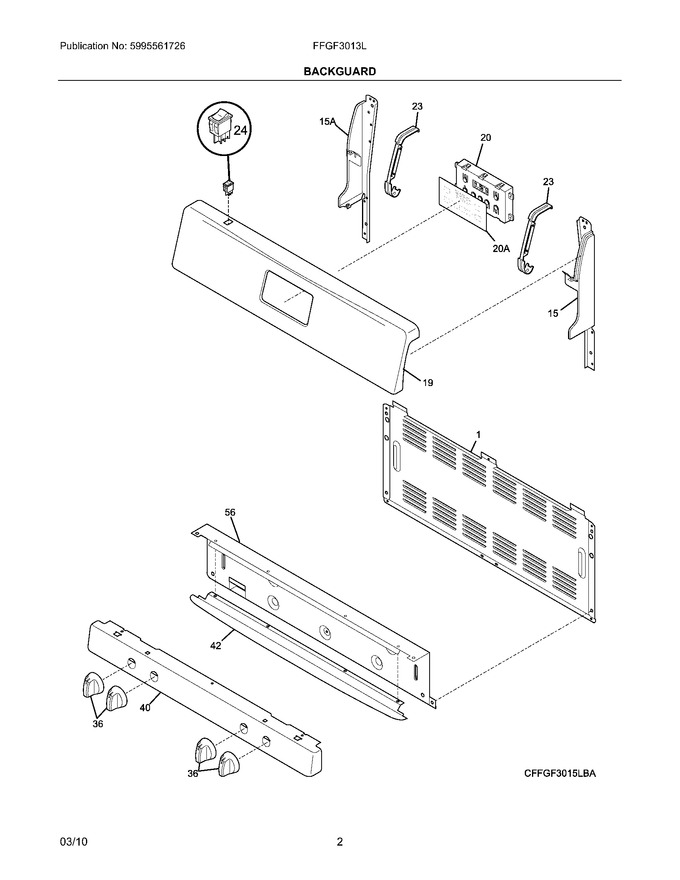

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316281802		Shield,backguard ,rear Wall   (Replaces: 316416100)				$ 57.64
15	316411403		Support,backguard ,white ,rh				$ 84.10
19	316541644		Panel,backguard ,white				$ 153.81
23	316441600		Bracket-clock Mtg,black				$ 20.48
36	316543906		Knob,top Valve ,white ,(4)				$ 25.48
40	316561908		Panel,manifold ,white		Appelez-nous	-
42	316416205		Trim,extrusion ,gray   (Replaces: 316416201)				$ 51.57
56	316230708		Shield,backguard ,inner   (Replaces: 316230701)				$ 61.66
15A	316411402		Support,backguard ,white ,lh				$ 94.55
20A	316220728		Overlay,clock ,white   (Replaces: 316220722)			Immediately	$ 39.44
F20	5304518661		Clock/timer,electronic ,es100   (Replaces: 316455410)			Immediately	$ 148.07
F24	5304527842		Switch,rocker ,white ,oven Light   (Replaces: 316448701)			Immediately	$ 16.13
NI	316089500		Screw, 10-16 X .486				$ 13.46
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw`8-18 X 0.5 ,chrome			Immediately	$ 27.50
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316519700		Screw,cup Pt ,8-18 X 0.375 ,chrome   (Replaces: 316021108)				$ 10.02
