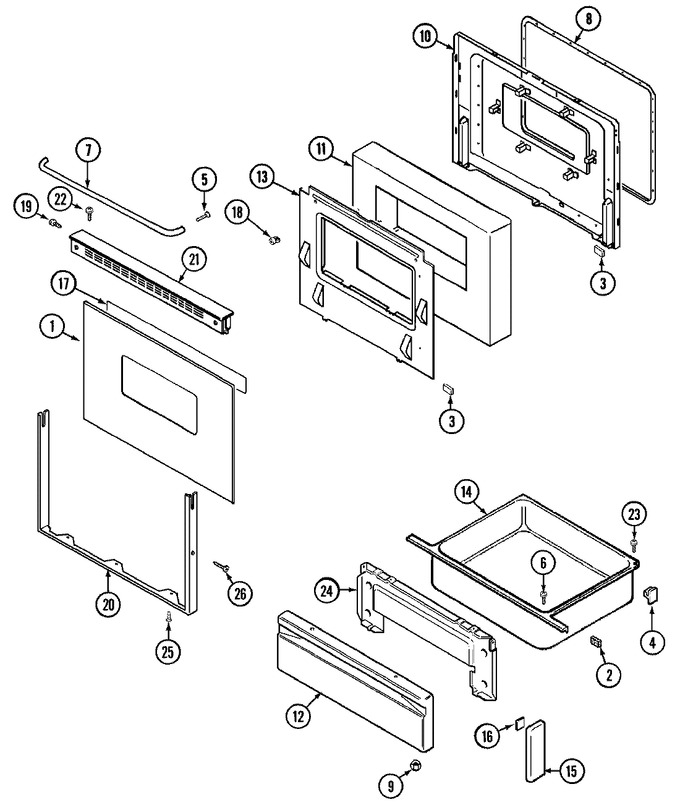

SELECT A DIAGRAM

01 - Body


02 - Control Panel


03 - Door/drawer


04 - Oven/base


05 - Top Assembly


06 - Wiring Information


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	74001664		Glass, Door (blk)	10	Appelez-nous	-
2	WP854334		Seal, Rubber   (Replaces: 7208P011-60)	10			$ 11.95
3	WP854334		Seal, Rubber   (Replaces: 7208P011-60)	10			$ 11.95
4	8004P026-60		Support, Drawer (rear)	10			$ 9.29
5	7101P326-60		Screw	10	Appelez-nous	-
6	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
7	7701P149-60		Handle, Oven Door (blk)	10	Appelez-nous	-
8	WPW10162384		Gasket, Door   (Replaces: 7201P046-60)	10		Immediately	$ 77.61
9	WPW10131078		Nut, Lock   (Replaces: 7103P139-60)	10			$ 4.00
10	2402W210-19		Lining, Door	10	Appelez-nous	-
11	4804F051-60		Insulation, Door	10	Appelez-nous	-
12	2416W001-71		Panel, Storage Drawer (wht)	10	Appelez-nous	-
13	3601F218-51		Baffle, Door Solid	10	Appelez-nous	-
14	3405F019-80		Drawer, Storage	10	Appelez-nous	-
15	7744P093-60		End Cap (wht)	10	Appelez-nous	-
16	8270P098-60		Tape	10			$ 5.02
17	8270P090-60		Tape, Foil (3`` Wide)	10	Appelez-nous	-
18	7103P045-60		Nut, Nylon	10	Appelez-nous	-
19	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
20	7706P309-60		Frame, Door (blk)	10	Appelez-nous	-
21	7706P305-60		Trim, Door (upper-blk)	10	Appelez-nous	-
22	WP98008545		Screw (8abx1/2``-blk)   (Replaces: 790448)	10			$ 15.94
23	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
24	2404F043-80		Lining	10	Appelez-nous	-
25	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
26	WP98008545		Screw (1/2``)   (Replaces: 7101P040-60)	10			$ 15.94

    View Diagram in Separate Window       Print Part List
