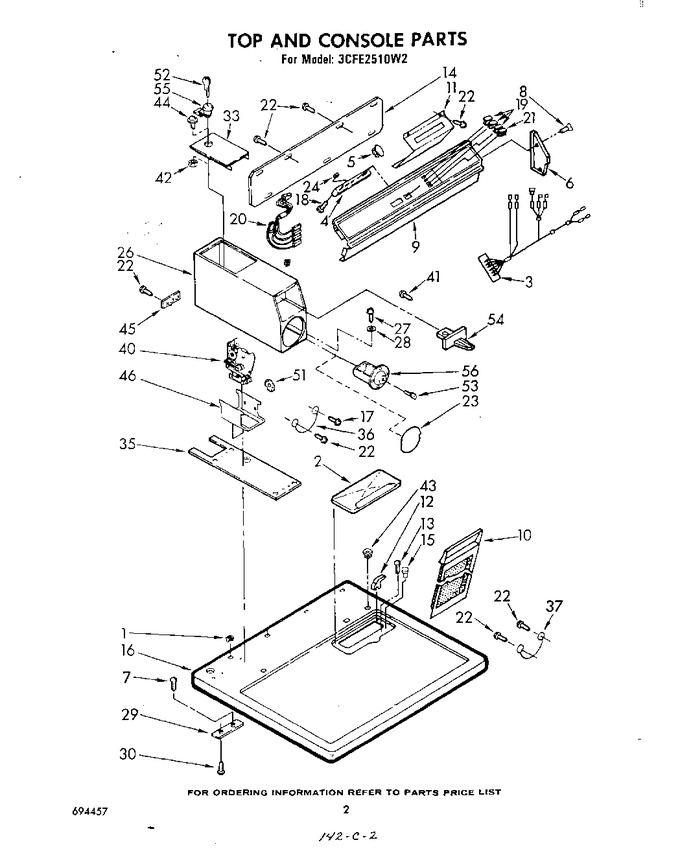

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	98219		Nut, Push-in (4)		Appelez-nous	-
2	691197		Cover, Lint Screen (chrome)		Appelez-nous	-
3	690055		Harness, Lower Wiring		Appelez-nous	-
3	688903		Harness, Upper Wiring		Appelez-nous	-
4	688670		Switch, Pushbutton		Appelez-nous	-
5	54690		Plug, Button		Appelez-nous	-
6	346830		Cap, End		Appelez-nous	-
7	90057		Screw (3)		Appelez-nous	-
8	WP488627		Screw, 8a X 1/2   (Replaces: 338156)				$ 6.81
9	688665		Billboard, Console		Appelez-nous	-
10	339392V		Screen, Lint   (Replaces: 690634)			Immediately	$ 37.72
11	358628		Bracket, Control		Appelez-nous	-
12	WPW10044470		Hinge, R.h.   (Replaces: 691193)				$ 6.95
12	WPW10044480		Hinge, L.h.   (Replaces: 691194)				$ 6.95
13	W11693756		Screw, 8-18 X 5/8   (Replaces: 688983)			Immediately	$ 12.65
14	356441		Panel, Rear		Appelez-nous	-
15	297535		Bumper, Lint Lid		Appelez-nous	-
16	345149		Top (white)		Appelez-nous	-
17	WP90767		Screw, 8a X 3/8   (Replaces: 90767)			Immediately	$ 7.04
18	WP965173		Screw, 8 X 3/8   (Replaces: 345304)			Immediately	$ 9.65
19	301006		Lens, Amber (3)		Appelez-nous	-
20	358750		Lights, Indicator (250 Volt)		Appelez-nous	-
21	358741		Lens, Yellow		Appelez-nous	-
22	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.07
23	376429		Plate Assembly (vault Cover)		Appelez-nous	-
24	358591		Button (4)		Appelez-nous	-
26	688919		Case, Meter (white)		Appelez-nous	-
27	691983		Bolt, 5/16-24 X 3/4 (4)		Appelez-nous	-
28	138485		Washer, 5/16		Appelez-nous	-
29	DD81-03277A		Plate & Nut Assembly   (Replaces: 83701)				$ 1.66
30	W10841059		Screw, 10-16 X 3/4   (Replaces: 98445)		Appelez-nous	-
33	W11283272		Door, Service (white)   (Replaces: 372510)				$ 95.29
35	WP3954812		Cushion, Console   (Replaces: 357128)				$ 27.99
36	690078		Wire, Ground		Appelez-nous	-
37	340025		Wire, Ground		Appelez-nous	-
40	688621		Timer, 50 Hz.		Appelez-nous	-
41	WP8576635		Bolt, Slide Mechanism   (Replaces: 352479)			Immediately	$ 67.13
42	WP90406		Nut, Cage   (Replaces: 90406)				$ 7.33
43	352292		Nut, Push-in				$ 11.43
44	358409		Screw & Washer		Appelez-nous	-
45	357856		Strap, Support		Appelez-nous	-
46	686760		Bracket, Timer		Appelez-nous	-
51	WP339854		Cam (9 Pin)   (Replaces: 339854)				$ 5.83
51	51-161-6		Cam (6 Pin)   (Replaces: 343777)				$ 31.07
51	WP339855		Cam (4 Pin)   (Replaces: 339855)				$ 7.53
56	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 34.39
56	350938		Paint, Pressurized Spray (12 Oz.) (primer,grey)		Appelez-nous	-
56	350941		Leveler (thinner)		Appelez-nous	-
56	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
	348772		Mult Venting, Instruction		Appelez-nous	-
	347146		Kit, Exhaust Deflector		Appelez-nous	-
	694457		List, Parts		Appelez-nous	-
	687452		Instructions, Installation (50 Hz.)		Appelez-nous	-
	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
	799351		Thinner (1 Gal.)		Appelez-nous	-
