01 - Body
02 - Control Panel
03 - Door/drawer
04 - Oven/base
05 - Top Assembly
06 - Wiring Information
SELECT A DIAGRAM
New Model Search:

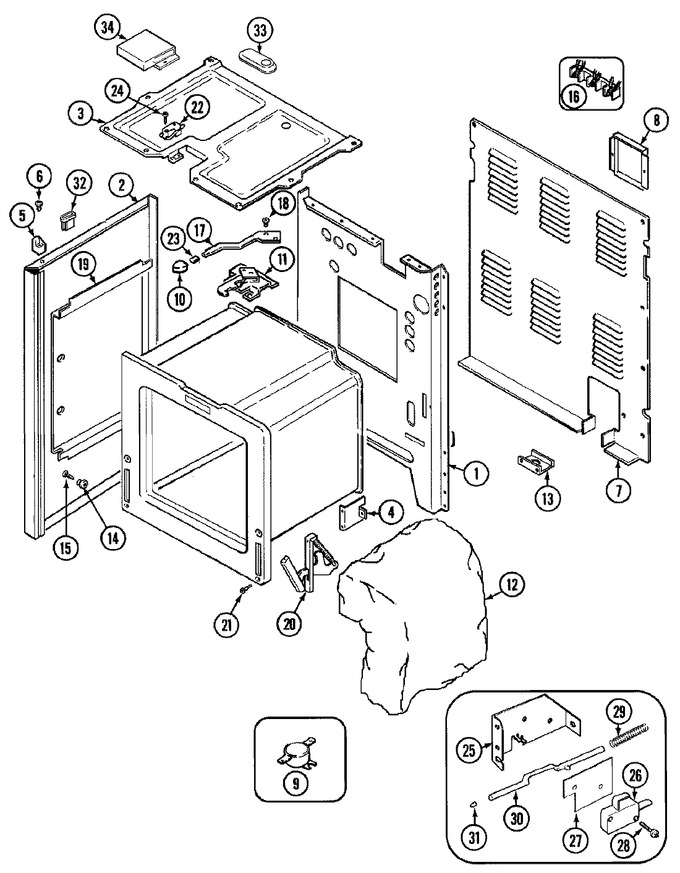

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 74001772 | Back, Main | 10 |
|
- | ||||
| 2 | 74001885 | Panel, Side (alm) | 10 |
|
- | ||||
| 2 | 8270P078-60 | Tape, Foil (29 1/2``) | 10 |
|
- | ||||
| 2 | 7003P067-60 | Insulator, Damper Sound | 10 |
|
- | ||||
| 3 | 74001753 | Box, Burner----na | 10 |
|
- | ||||
| 4 | 3807F400-51 | Support,oven Rear | 10 |
|
- | ||||
| 5 | 8010P088-60 | Spacer, Main Top (rt) | 10 |
|
- | ||||
| 5 | 8010P087-60 | Spacer, Main Top (lt) | 10 |
|
- | ||||
| 6 | 7101P313-60 | Screw (8abx3/8-zn) | 10 |
|
- | ||||
| 7 | 4005F455-51 | Cover, Wire | 10 |
|
- | ||||
| 8 | 4005F427-51 | Cover, Access | 10 |
|
- | ||||
| 9 | 7403P160-60 | Switch, Hi-limit | 10 |
|
- | ||||
| 10 | W10124350 | Not Required Part Or See Note | 19 |
|
- | ||||
| 10 | W10124350 | Not Required Part Or See Note | 18 |
|
- | ||||
| 10 | W10124350 | Not Required Part Or See Note | 21 |
|
- | ||||
| 10 | 7701P151-60 | Handle, Latch (alm) | 10 |
|
- | ||||
| 11 | 8002P025-60 | Latch Assy. | 10 |
|
- | ||||
| 11 | 4804F028-60 | Insulation, Latch Assy. | 10 |
|
- | ||||
| 11 | W10828565 | Screw, Black (Replaces: 7101P270-60) | 22 |
|
$ 6.70 | ||||
| 11 | 74003032 | Latch Assy. | 22 |
|
- | ||||
| 11 | 7101P280-60 | Screw W/washer (blk) | 10 |
|
- | ||||
| 12 | 4804F036-60 | Insulation, Wrap | 10 |
|
- | ||||
| 12 | 74001800 | Insulation, Back | 10 |
|
- | ||||
| 13 | 3605F174-51 | Plate, Conduit Tubing | 10 |
|
- | ||||
| 14 | W10857933 | Spacer, Side Panel (Replaces: 8004P024-60) | 10 |
|
$ 7.07 | ||||
| 15 | W11772394 | Screw (Replaces: 7101P345-60) | 10 |
|
Immediately | $ 10.94 | |||
| 16 | WPW10245259 | Block, Terminal (Replaces: 7401P039-60) | 10 |
|
Immediately | $ 31.65 | |||
| 17 | 74001725 | Lever, Door Latch | 10 |
|
- | ||||
| 17 | 74003006 | Lever, Latch (brn) | 19 |
|
- | ||||
| 18 | WP4159193 | Screw, Lever (Replaces: 7101P230-60) | 10 |
|
$ 4.29 | ||||
| 19 | 3804F103-51 | Retainer, Insulation (side) | 10 |
|
- | ||||
| 20 | 7106P056-60 | Hinge | 10 |
|
- | ||||
| 20 | WP74011140 | Hinge, Door (Replaces: 74003243) | 28 |
|
Immediately | $ 120.21 | |||
| 21 | WP4159193 | Screw (10-24x5/16-ni) (Replaces: 7101P282-60) | 10 |
|
$ 4.29 | ||||
| 22 | 74001708 | Switch, Door Latch | 10 |
|
- | ||||
| 23 | W10124350 | Not Required Part Or See Note | 18 |
|
- | ||||
| 23 | W10124350 | Not Required Part Or See Note | 19 |
|
- | ||||
| 23 | 7112P112-60 | Clip, Latch Lever | 10 |
|
$ 4.83 | ||||
| 23 | W10124350 | Not Required Part Or See Note | 21 |
|
- | ||||
| 24 | 7101P130-60 | Screw, Latch Switch | 10 |
|
- | ||||
| 25 | 74001632 | Bracket, Switch Actuator | 10 |
|
- | ||||
| 25 | WPY706189 | Screw (8abx3/8-blk) (Replaces: 7101P347-60) | 10 |
|
Immediately | $ 6.47 | |||
| 26 | 74001628 | Switch, Door Light | 10 |
|
- | ||||
| 26 | 74001598 | Shield, Door Light Switch | 10 |
|
- | ||||
| 27 | 74001626 | Insulator, Door Switch | 10 |
|
- | ||||
| 28 | 7101P330-60 | Screw, Switch | 10 |
|
- | ||||
| 29 | 74001629 | Spring, Door Switch | 10 |
|
$ 15.03 | ||||
| 30 | 74001630 | Rod, Door Light Switch | 10 |
|
- | ||||
| 31 | 74001631 | Bumper, Rod | 10 |
|
$ 5.22 | ||||
| 32 | 74001256 | Bushing, Prop Support | 10 |
|
- | ||||
| 33 | 4005F432-45 | Cover, Vent | 10 |
|
- | ||||
| 34 | 4005F398-80 | Cover, Latch Assy. | 10 |
|
- |
